The Las Vegas Boulevard Tracker Interface презентация
Содержание
- 1. The Las Vegas Boulevard Tracker Interface
- 2. 08/18/2018 Introduction A satellite antenna rotator interface For use with Yaesu/Kenpro G5400/5500/5600 series rotators
- 3. 08/18/2018 Topics of Discussion Why do we
- 4. 08/18/2018 Why do we need another rotator
- 5. 08/18/2018 The ISA Slot/COM/LPT port problem ISA
- 6. 08/18/2018 USB – The ‘new’ standard USB
- 7. 08/18/2018 TCP/IP over Ethernet Almost universal standard Permits distributed location of equipment
- 8. 08/18/2018 The Las Vegas Boulevard Tracker -
- 9. 08/18/2018 The LVB Tracker - 2 Provides

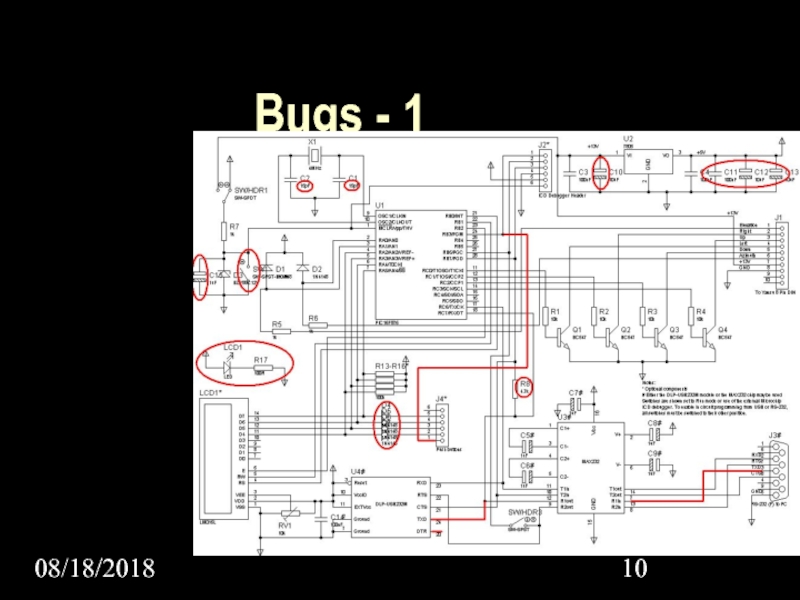

- 10. 08/18/2018 Bugs - 1

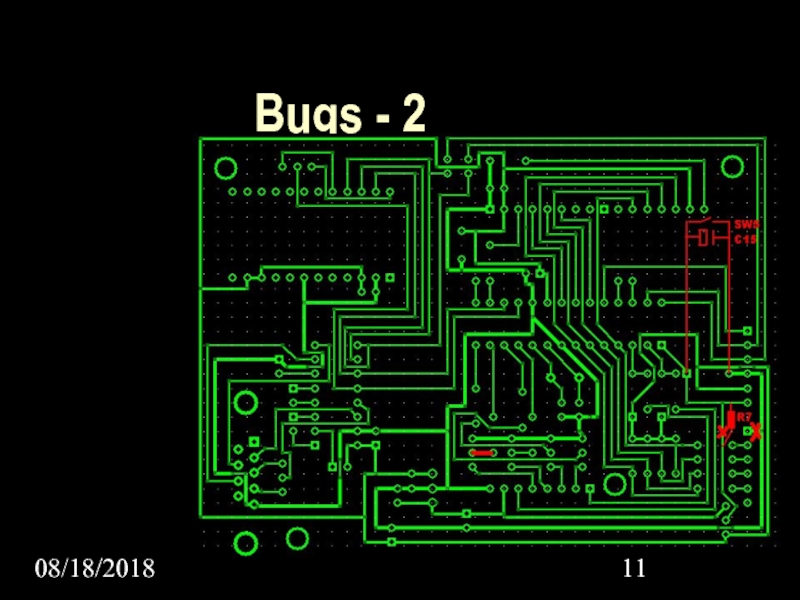

- 11. 08/18/2018 Bugs - 2
- 12. 08/18/2018 How much? Basic RS-232: £12+PCB USB:
08/18/2018 Introduction A satellite antenna rotator interface For use with Yaesu/Kenpro G5400/5500/5600 series rotators
Слайд 208/18/2018
Introduction
A satellite antenna rotator interface
For use with Yaesu/Kenpro G5400/5500/5600 series rotators
Слайд 308/18/2018
Topics of Discussion
Why do we need another rotator tracking interface?
The Las
Vegas Boulevard Tracker
Слайд 408/18/2018
Why do we need another rotator interface?
Hardware PC interfaces have changed
but rotator interfaces haven’t
Kansas City Tracker – ISA slot
Many others use COM ports or LPT ports
USB is a new standard
TCP/IP is now a de facto standard
Kansas City Tracker – ISA slot
Many others use COM ports or LPT ports
USB is a new standard
TCP/IP is now a de facto standard
Слайд 508/18/2018
The ISA Slot/COM/LPT port problem
ISA slots are non-existent in new PCs
COM
(RS-232) ports are becoming less common in new equipment, laptops in particular
LPT ports also less common, and also difficult to program control signals from applications under newer OS’s
Lack of interrupts on PCs!
LPT ports also less common, and also difficult to program control signals from applications under newer OS’s
Lack of interrupts on PCs!
Слайд 608/18/2018
USB – The ‘new’ standard
USB is now very common
Traditionally very difficult
to develop USB drivers, so only economically viable for large volumes
Each OS has a completely different driver model
Each OS has a completely different driver model
Слайд 708/18/2018

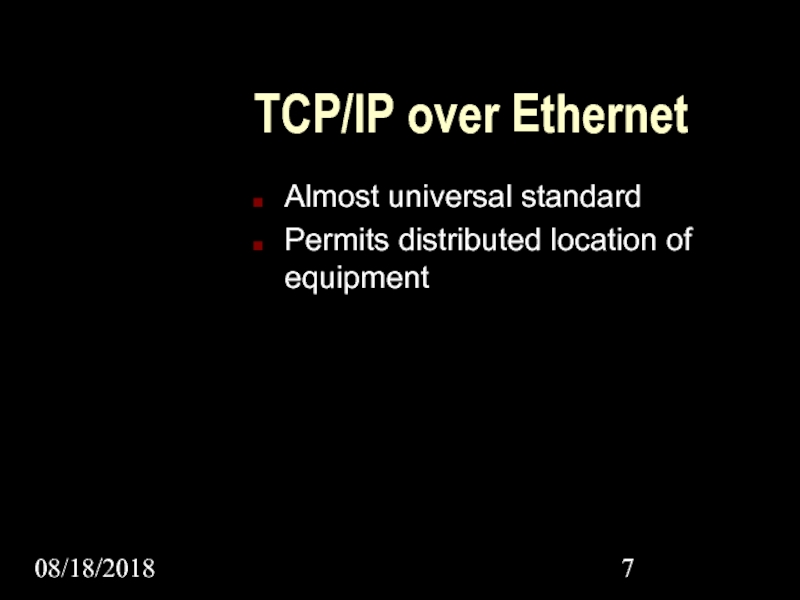

TCP/IP over Ethernet
Almost universal standard
Permits distributed location of equipment
Слайд 808/18/2018
The Las Vegas Boulevard Tracker - 1
Physical development mostly over past
two months
Most of the thought process and initial considerations compiled on vacation
Most of the thought process and initial considerations compiled on vacation
Слайд 908/18/2018
The LVB Tracker - 2
Provides multiple hardware interface options
RS-232, USB, TCP/IP
over Ethernet
Compatible with EasyComm and Yaesu GS-232 software protocols
Integrated on board microcontroller programmer
Optional LCD display and buttons
Cross platform support – Linux, Open BSD, Free BSD, Windows 98, ME, 2000, XP, Mac OS-8, OS-9 and OS-X
Open source microcontroller code
Compatible with EasyComm and Yaesu GS-232 software protocols
Integrated on board microcontroller programmer
Optional LCD display and buttons
Cross platform support – Linux, Open BSD, Free BSD, Windows 98, ME, 2000, XP, Mac OS-8, OS-9 and OS-X
Open source microcontroller code
Слайд 1208/18/2018
How much?
Basic RS-232: £12+PCB
USB: £17+PCB
TCP/IP Ethernet: £47+PCB
Optional LCD: £10
Optional Buttons: £4
