Radio Management. eNet – жилой дом презентация
Содержание
- 1. Radio Management. eNet – жилой дом
- 2. eNet – жилой дом

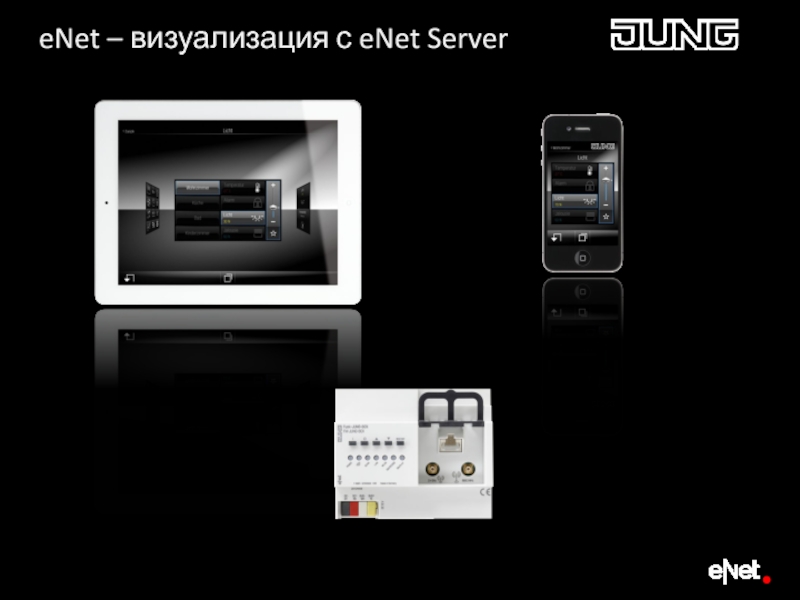

- 3. eNet – визуализация с eNet Server

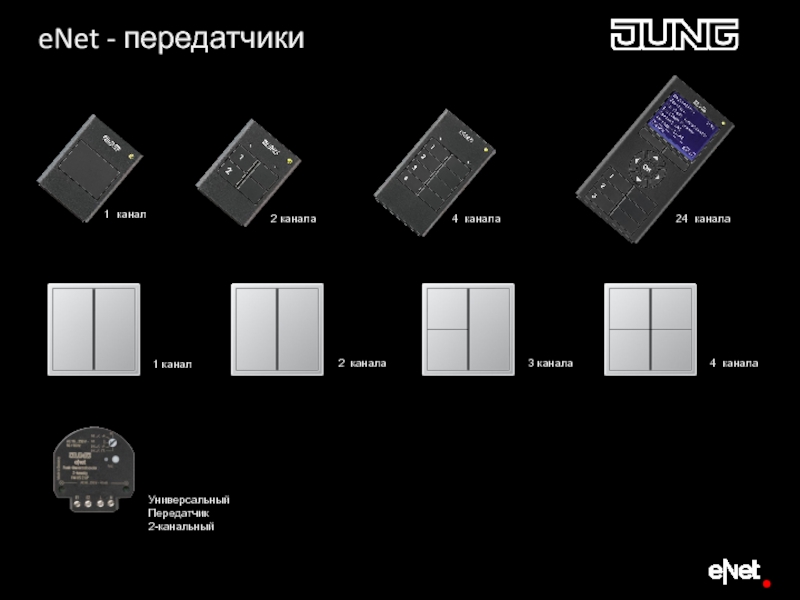

- 4. eNet - передатчики
- 5. eNet – IP шлюз
- 6. eNet - IP шлюз Передатчик соответствующий времени
- 7. eNet - IP шлюз

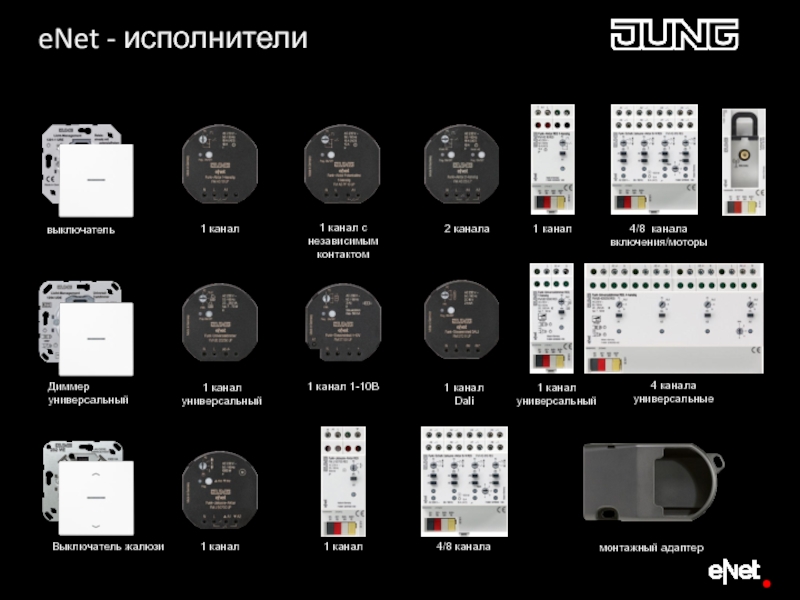

- 8. eNet - исполнители

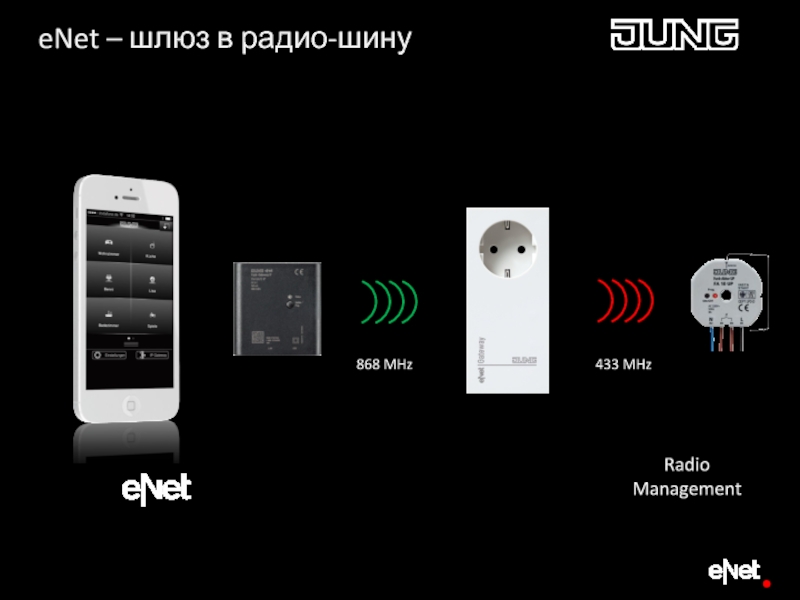

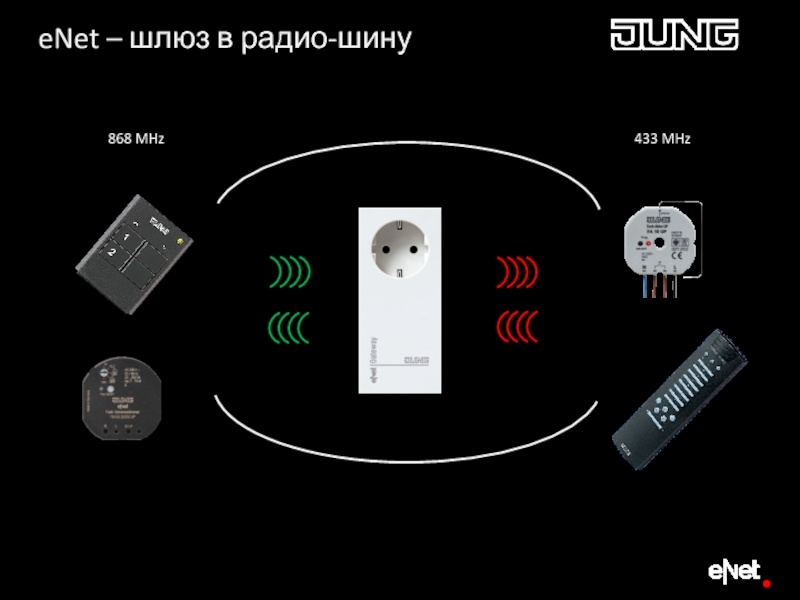

- 9. eNet – шлюз в радио-шину

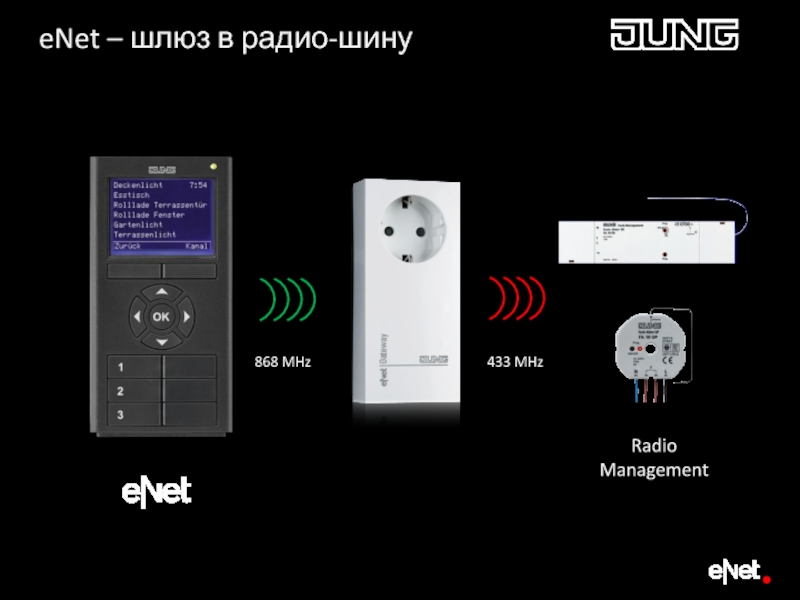

- 10. eNet – шлюз в радио-шину
- 11. eNet – шлюз в радио-шину Radio Management
- 12. eNet – управление энергопотреблением

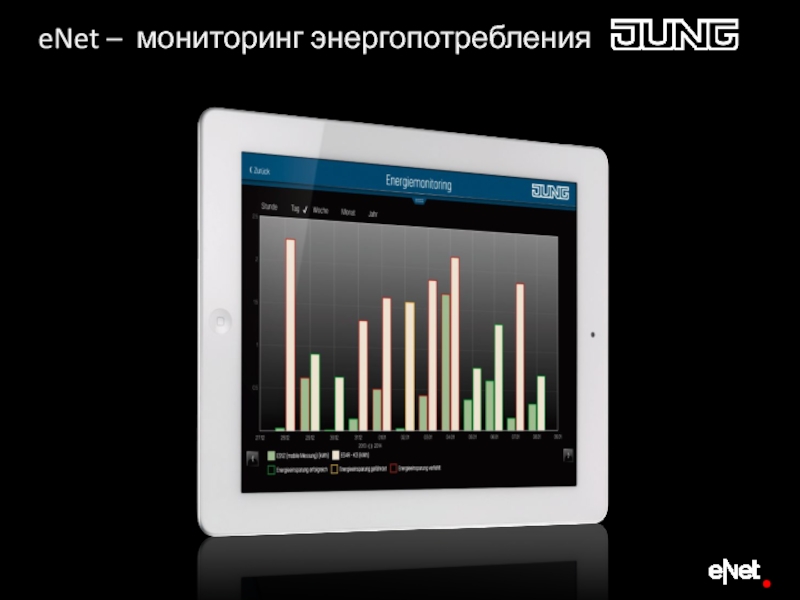

- 13. eNet – мониторинг энергопотребления

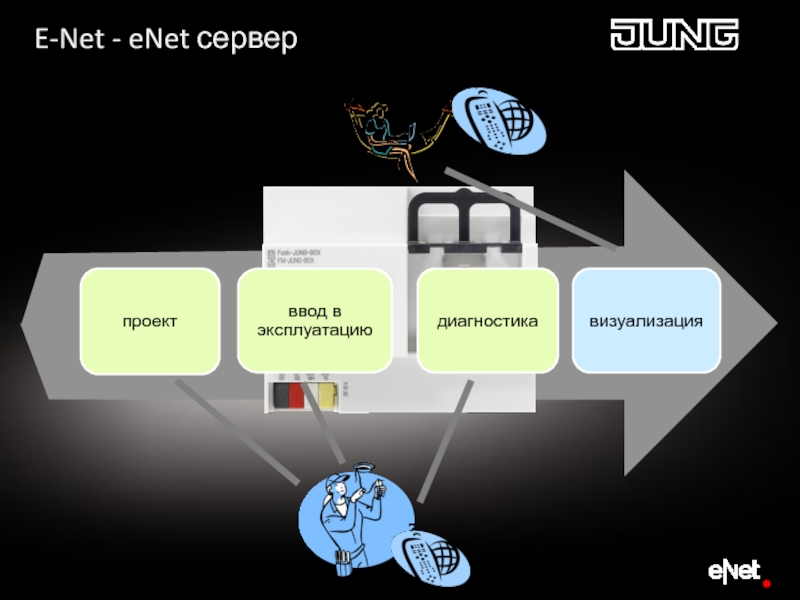

- 14. проект ввод в эксплуатацию визуализация диагностика E-Net - eNet сервер

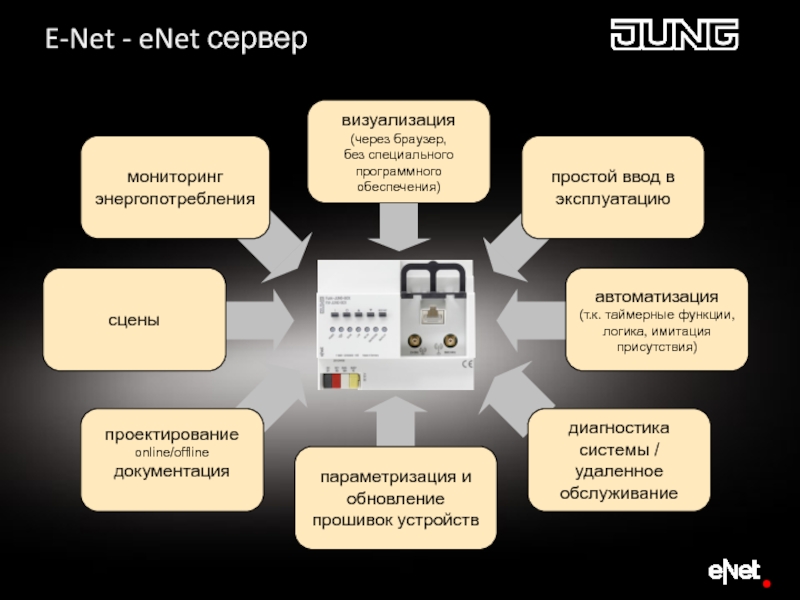

- 15. E-Net - eNet сервер
- 16. eNet – технические данные
- 17. eNet - технические данные
- 18. частота: 868.3 MHZ связь: двунаправленная мощность: max.

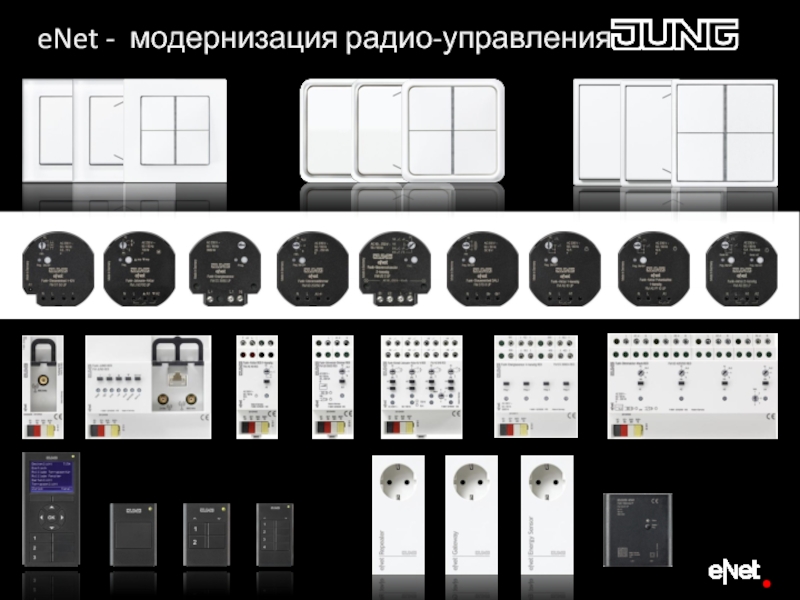

- 19. eNet - модернизация радио-управления
- 20. ALBRECHT JUNG GMBH & CO. KG Home and building automation with KNX
- 21. Larger demand for comfort Extended
- 22. The advantages of a KNX installation:
- 23. Organisation KNX organisation in Brussels Non
- 24. Traditional installation Each technique has its own platform with its own cabling structure.
- 25. Extensions are difficult and need
- 26. The KNX installation BUS 230V

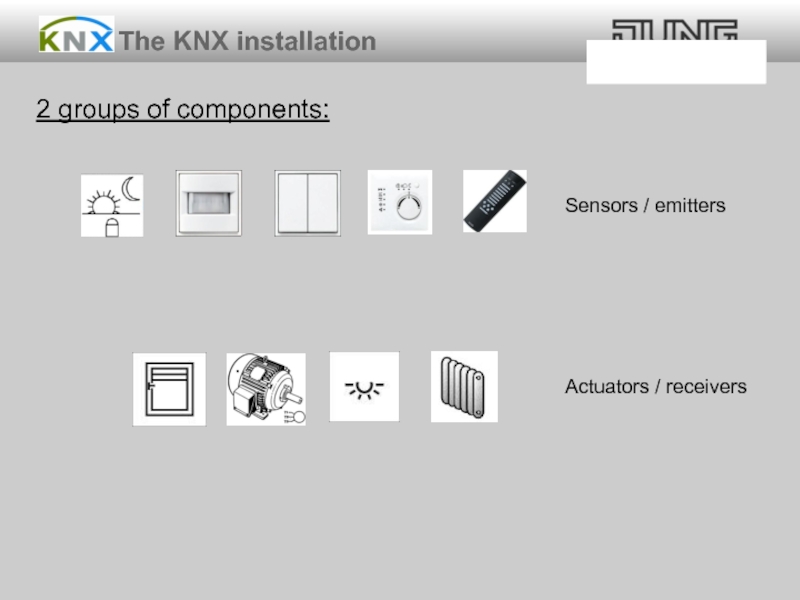

- 27. Sensors / emitters 2 groups of components: The KNX installation
- 28. Power supply: 29V DC 2

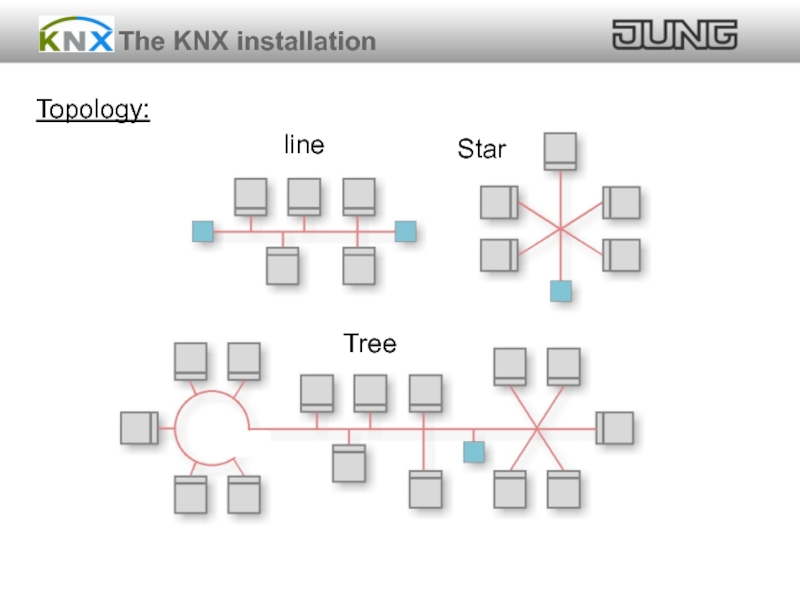

- 29. Topology: The KNX installation
- 30. Topology: DEV DEV DEV DEV
- 31. Topology: The KNX installation

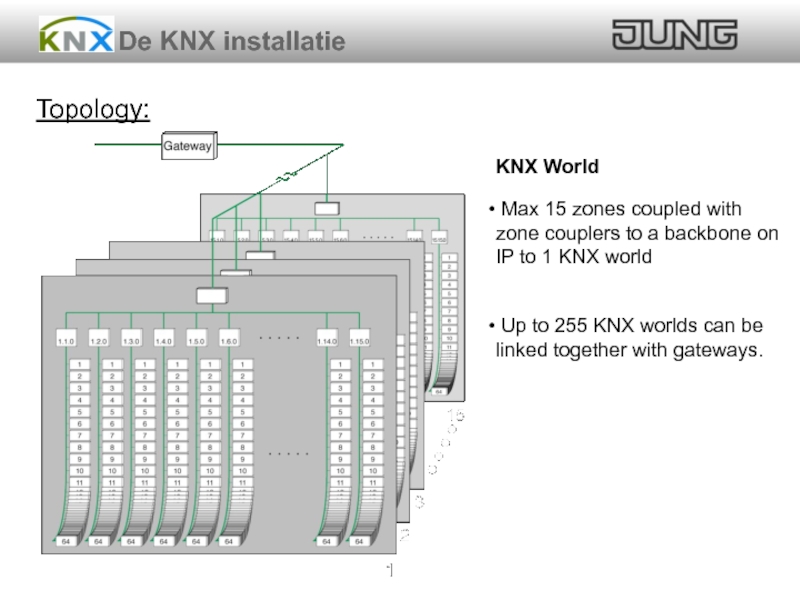

- 32. De KNX installatie Topology:

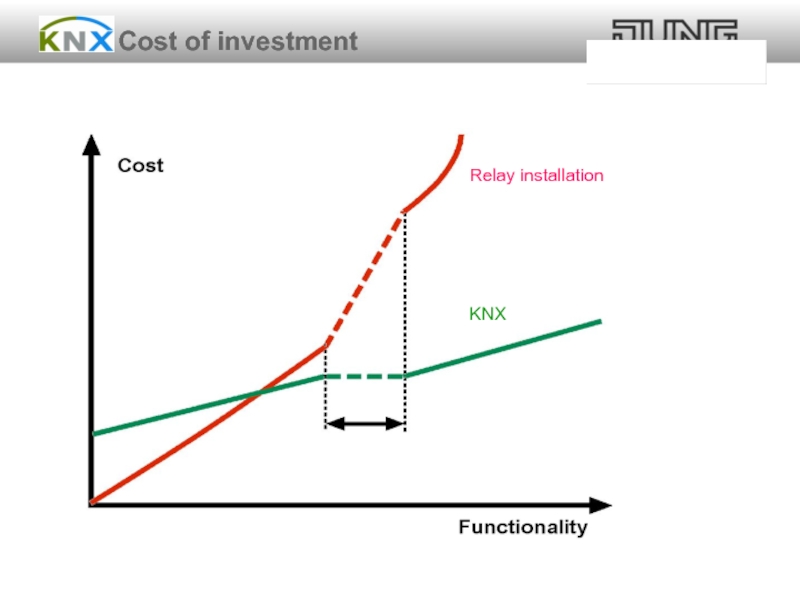

- 33. Cost of investment
- 34. 300 manufacturers in 33 countries
- 35. Communication Physical address: Each KNX device has
- 36. 1.0.0 2.0.0 15.0.0 1.1.0 1.15.0 1.1.1 1.1.2
- 37. Communication Communication objects KNX device switching actuator
- 38. Groepsaddresses Communication structure between devices Is transmitted
- 39. Main group Middle group Address 1 Central
- 40. Main group Middle group Address 1 Kitchen
- 41. Group lighting / switching / kitchen table
- 42. Group lighting / switching / sofa on-off
- 43. L 2/1/1 2/1/2 E1 E2 2/1/1 2/1/2
- 44. L 2/1/1 (1/1/1) E1 E2 1.1.2 1.1.3

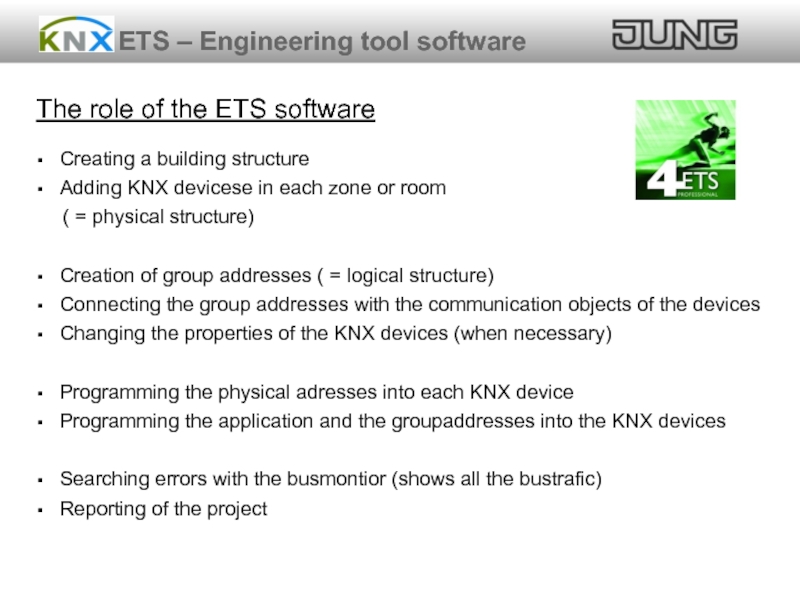

- 45. ETS – Engineering tool software The role

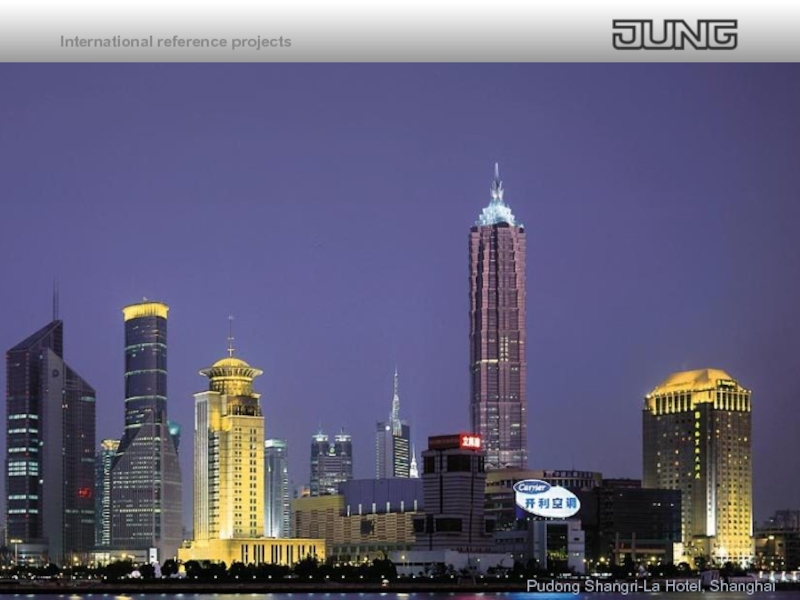

- 46. Pudong Shangri-La Hotel, Shanghai International reference projects

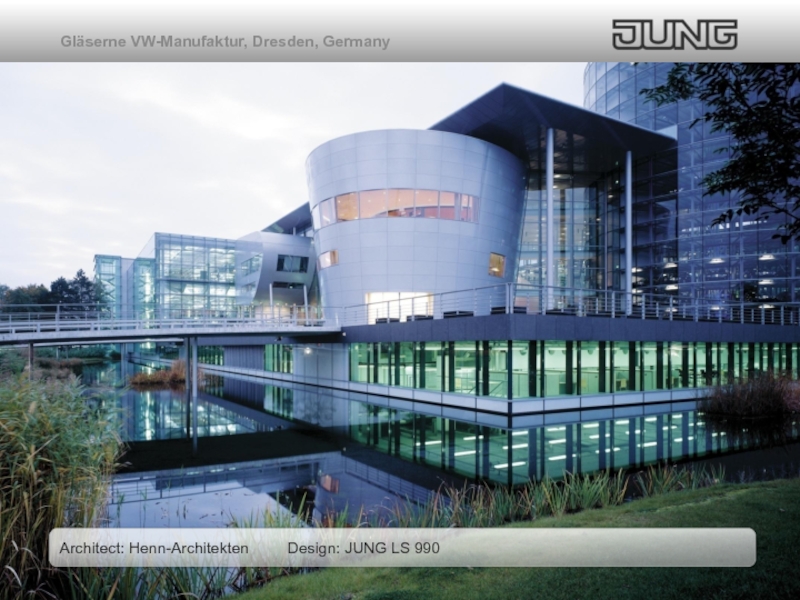

- 47. Gläserne VW-Manufaktur, Dresden, Germany Architect: Henn-Architekten Design: JUNG LS 990

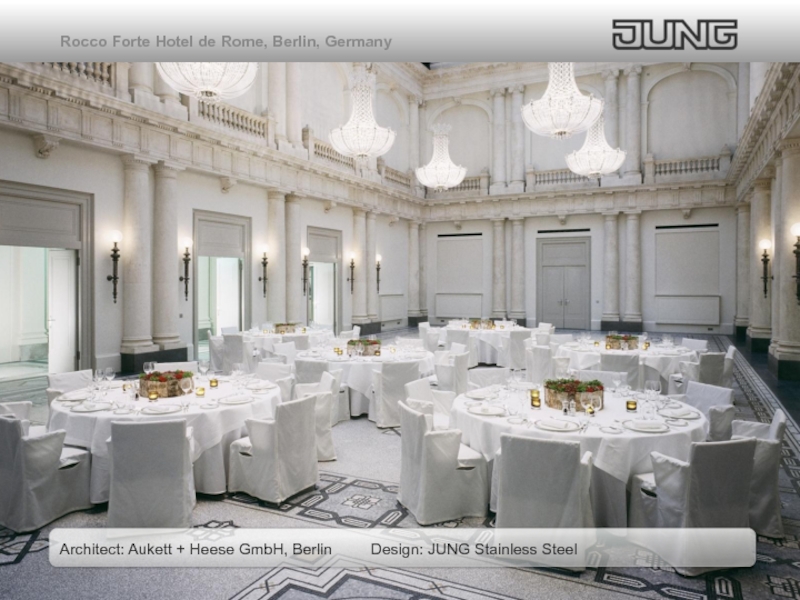

- 48. Rocco Forte Hotel de Rome, Berlin, Germany

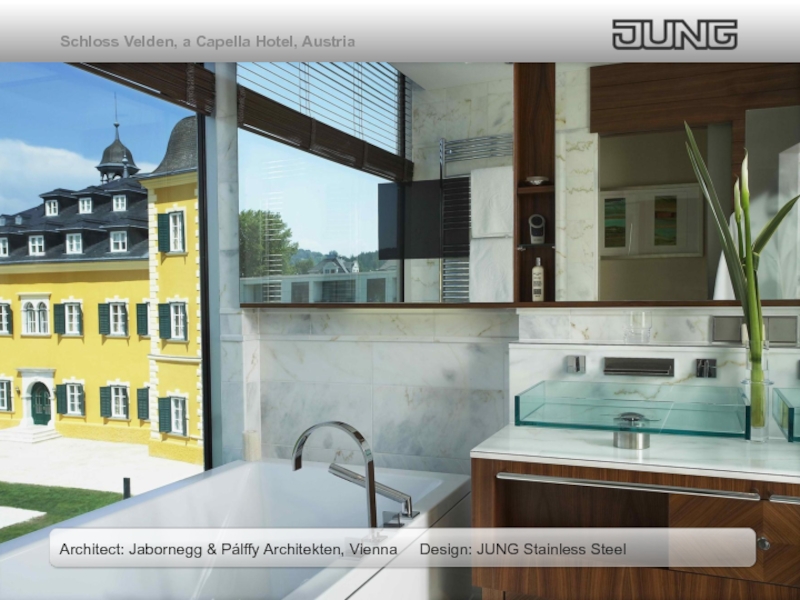

- 49. Schloss Velden, a Capella Hotel, Austria Architect:

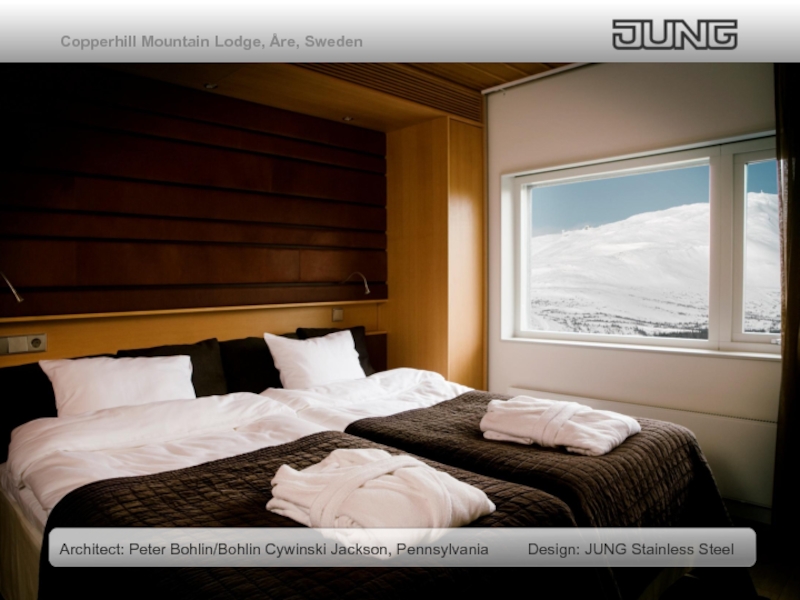

- 50. Copperhill Mountain Lodge, Åre, Sweden Architect:
- 51. Hotel W, Barcelona, Spanien Architekt: Ricardo Bofill

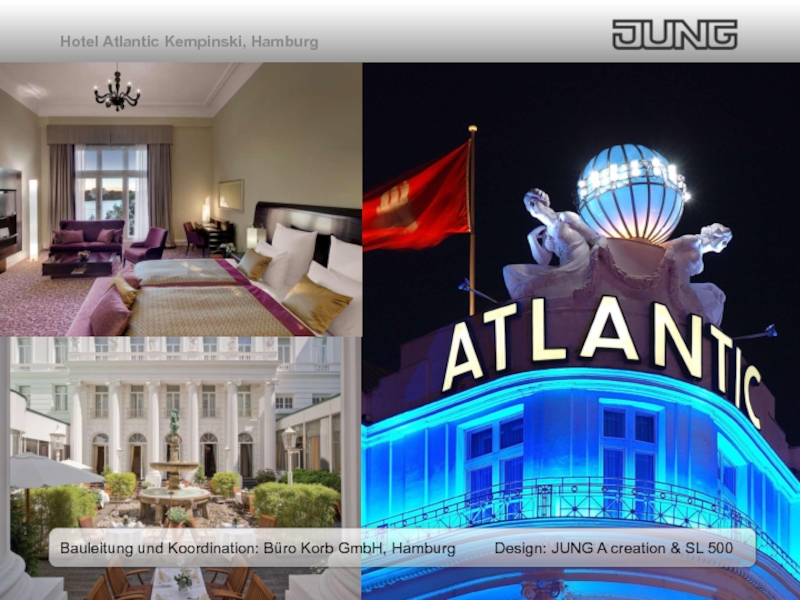

- 52. Hotel Atlantic Kempinski, Hamburg Bauleitung und Koordination:
- 53. Thank you for your attention!

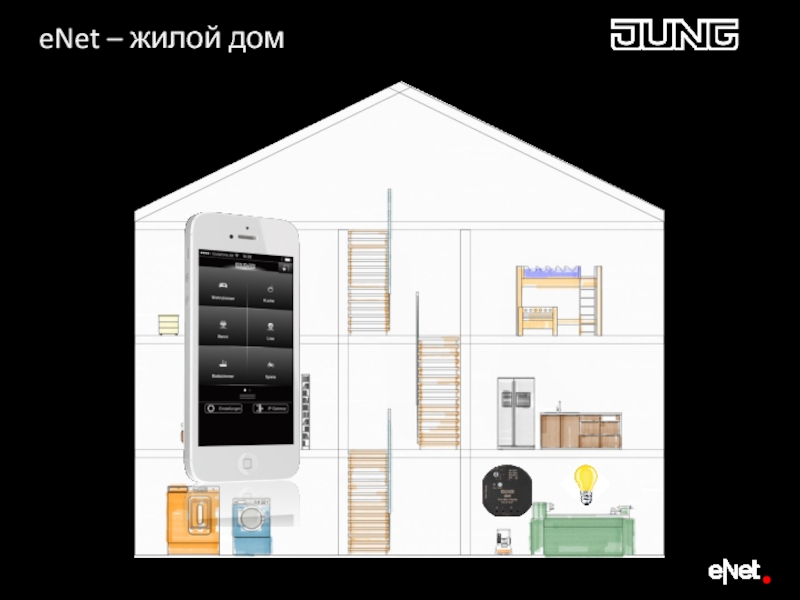

eNet – жилой дом
Слайд 1All components (transmitters, repeaters, receivers) are connected via radio
Transmitters are independent
of the power network
Optimum suitability for retrofitting
No renovation costs
Architecturally sophisticated solutions can be realised (glass, concrete....)
Flexible electrical installation for changes in usage
Optimum suitability for retrofitting
No renovation costs
Architecturally sophisticated solutions can be realised (glass, concrete....)
Flexible electrical installation for changes in usage

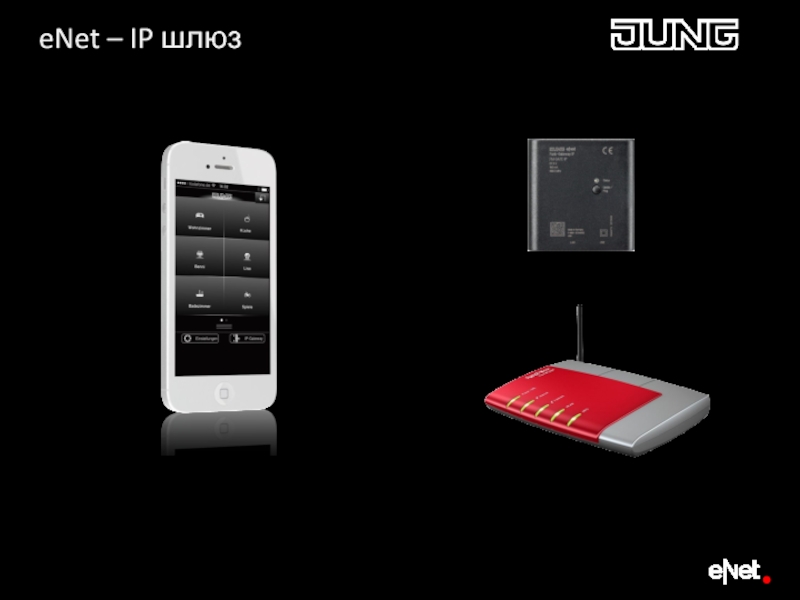

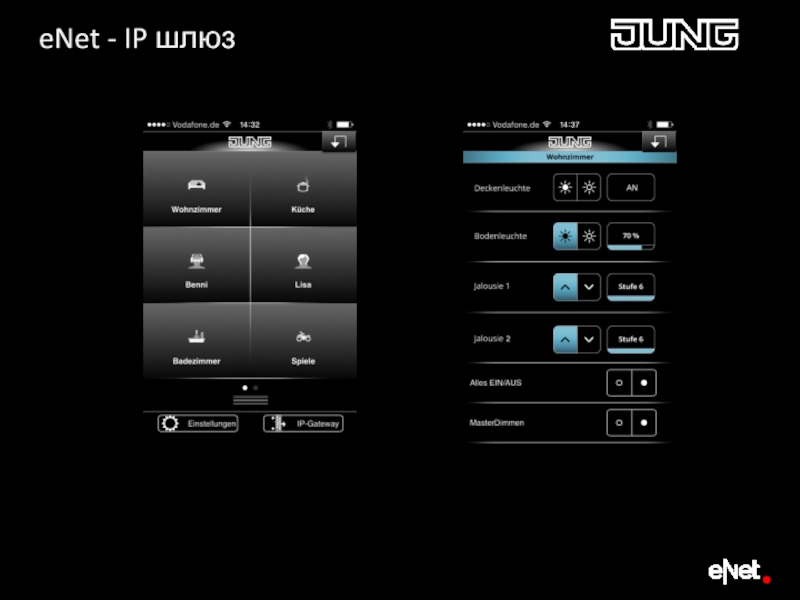

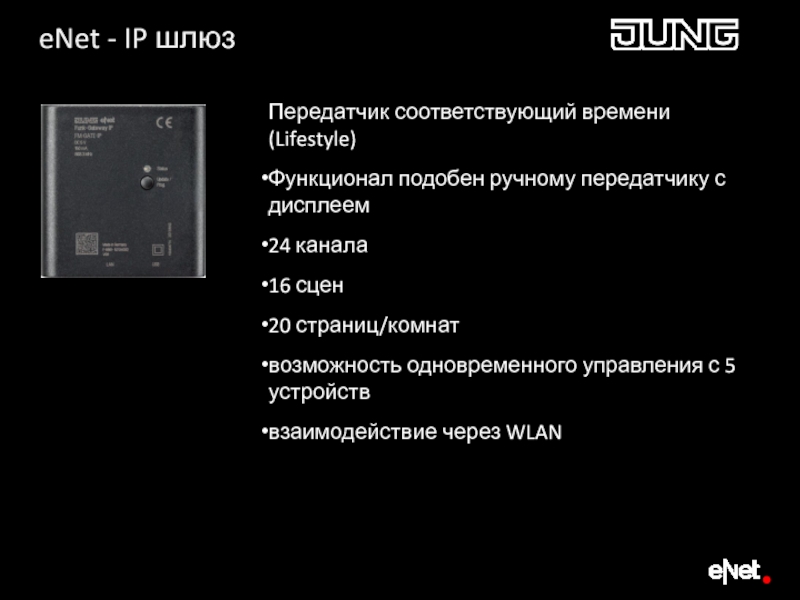

Слайд 6eNet - IP шлюз
Передатчик соответствующий времени (Lifestyle)
Функционал подобен ручному передатчику с
дисплеем
24 канала
16 сцен
20 страниц/комнат
возможность одновременного управления с 5 устройств
взаимодействие через WLAN
24 канала
16 сцен
20 страниц/комнат
возможность одновременного управления с 5 устройств
взаимодействие через WLAN

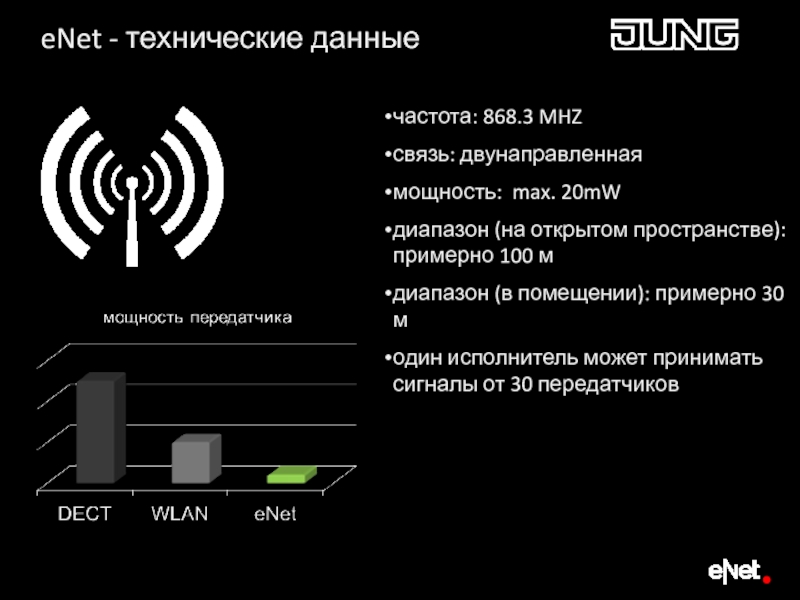

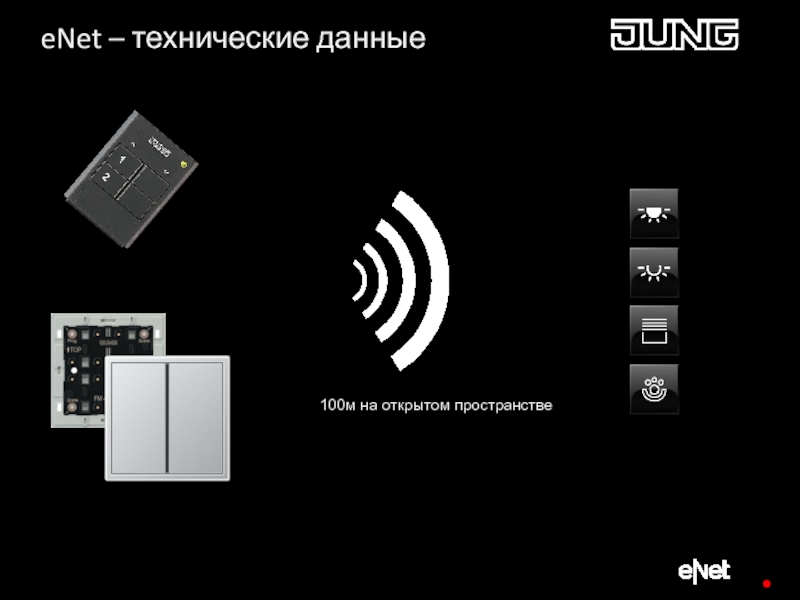

Слайд 18частота: 868.3 MHZ
связь: двунаправленная
мощность: max. 20mW
диапазон (на открытом пространстве): примерно 100
м
диапазон (в помещении): примерно 30 м
один исполнитель может принимать сигналы от 30 передатчиков
диапазон (в помещении): примерно 30 м
один исполнитель может принимать сигналы от 30 передатчиков
eNet - технические данные
Слайд 21 Larger demand for comfort
Extended functionalities
Simple operation / handling
Integration of different technologies
Saving energy Green building
Reducing the cost of extensions / modifications
Installation ready for the future Continuity guaranteed
Saving energy Green building
Reducing the cost of extensions / modifications
Installation ready for the future Continuity guaranteed
Requirements of a modern installation:
Requirements

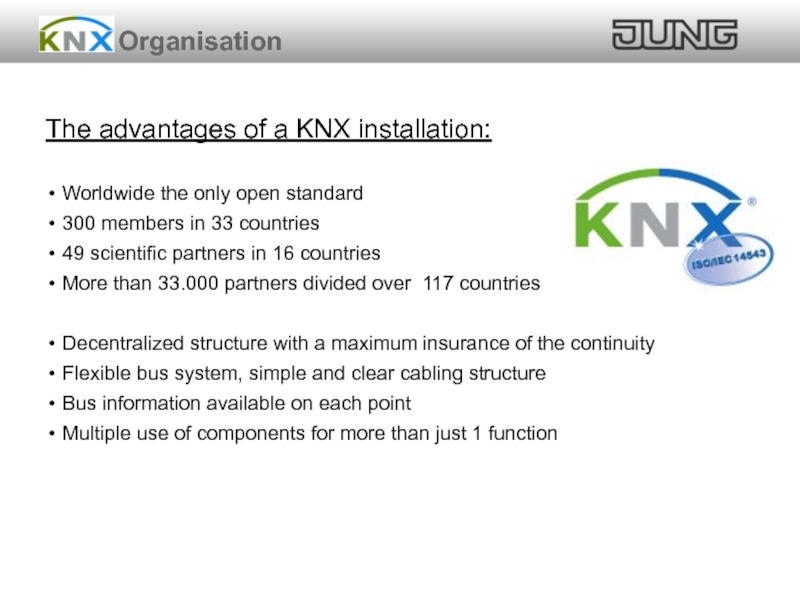

Слайд 22The advantages of a KNX installation:
Worldwide the only open standard
300 members
in 33 countries
49 scientific partners in 16 countries
More than 33.000 partners divided over 117 countries
Decentralized structure with a maximum insurance of the continuity
Flexible bus system, simple and clear cabling structure
Bus information available on each point
Multiple use of components for more than just 1 function
49 scientific partners in 16 countries
More than 33.000 partners divided over 117 countries
Decentralized structure with a maximum insurance of the continuity
Flexible bus system, simple and clear cabling structure
Bus information available on each point
Multiple use of components for more than just 1 function
Organisation

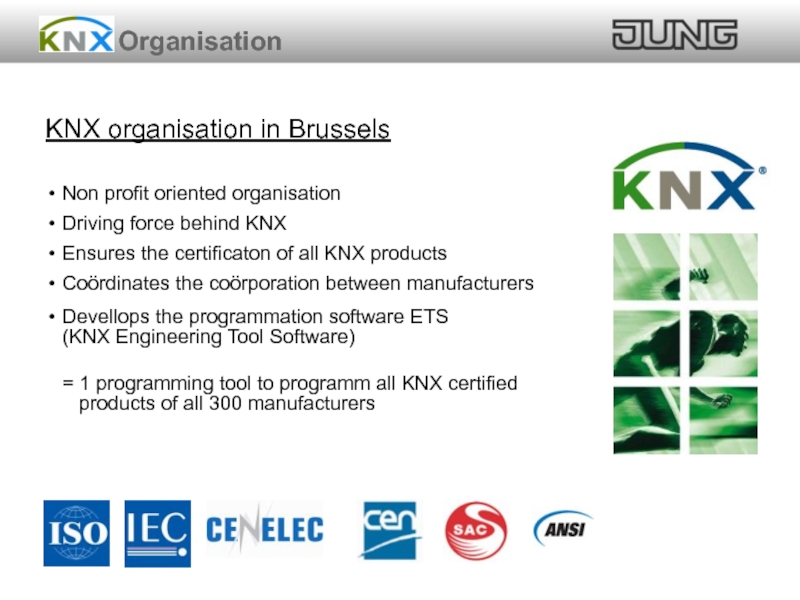

Слайд 23Organisation
KNX organisation in Brussels
Non profit oriented organisation
Driving force behind KNX
Ensures the
certificaton of all KNX products
Coördinates the coörporation between manufacturers
Devellops the programmation software ETS (KNX Engineering Tool Software)
= 1 programming tool to programm all KNX certified products of all 300 manufacturers
Coördinates the coörporation between manufacturers
Devellops the programmation software ETS (KNX Engineering Tool Software)
= 1 programming tool to programm all KNX certified products of all 300 manufacturers
Слайд 25
Extensions are difficult and need a changing in the cabling
structure
Similar components are installed repeatedly (e.g. 1 time switch for each technique)
Similar components are installed repeatedly (e.g. 1 time switch for each technique)

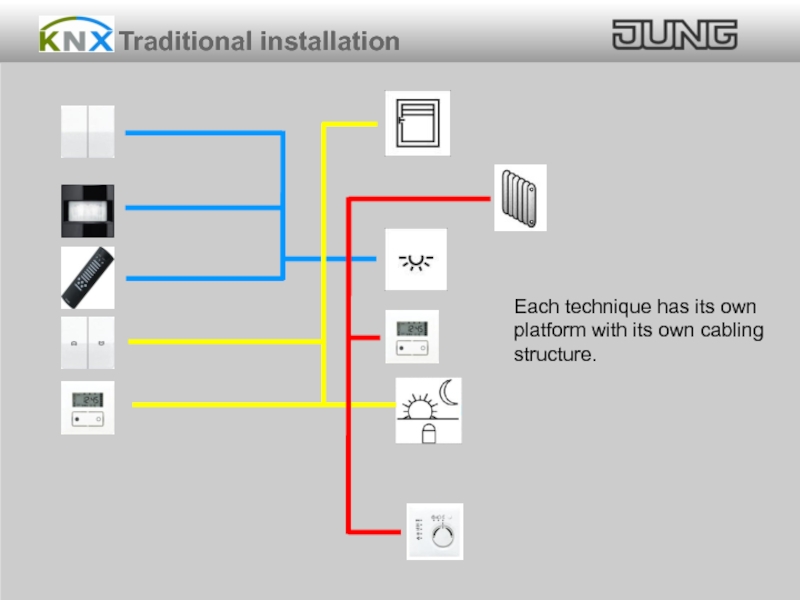

Traditional installation

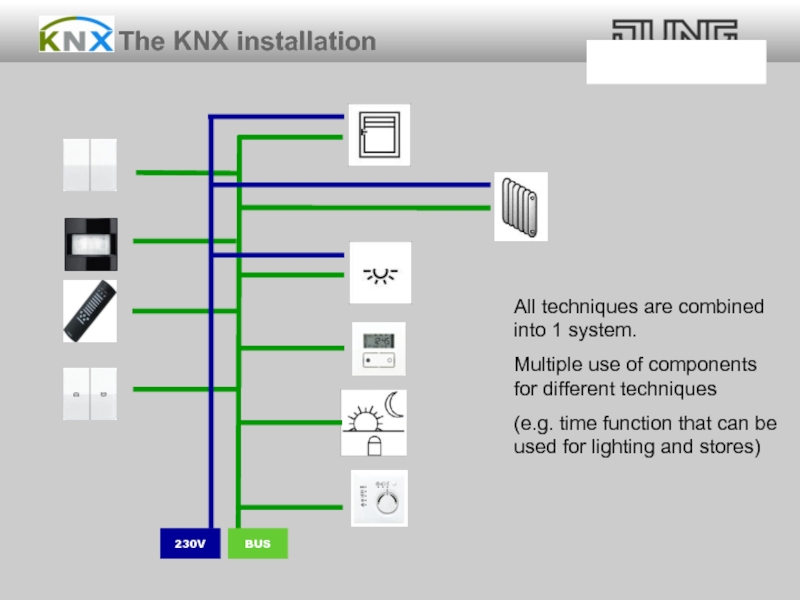

Слайд 26
The KNX installation
BUS
230V
All techniques are combined into 1 system.
Multiple use
of components
for different techniques
(e.g. time function that can be used for lighting and stores)
(e.g. time function that can be used for lighting and stores)

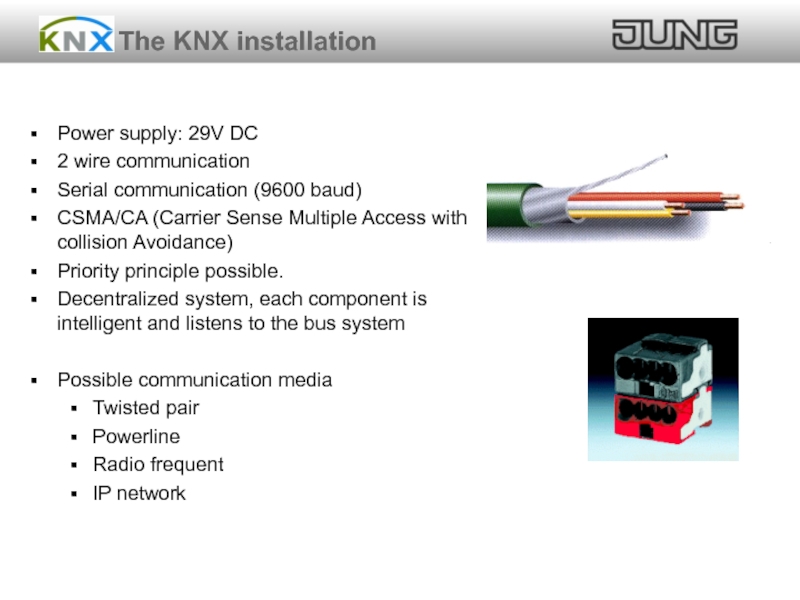

Слайд 28
Power supply: 29V DC
2 wire communication
Serial communication (9600 baud)
CSMA/CA (Carrier
Sense Multiple Access with collision Avoidance)
Priority principle possible.
Decentralized system, each component is intelligent and listens to the bus system
Possible communication media
Twisted pair
Powerline
Radio frequent
IP network
Priority principle possible.
Decentralized system, each component is intelligent and listens to the bus system
Possible communication media
Twisted pair
Powerline
Radio frequent
IP network
The KNX installation

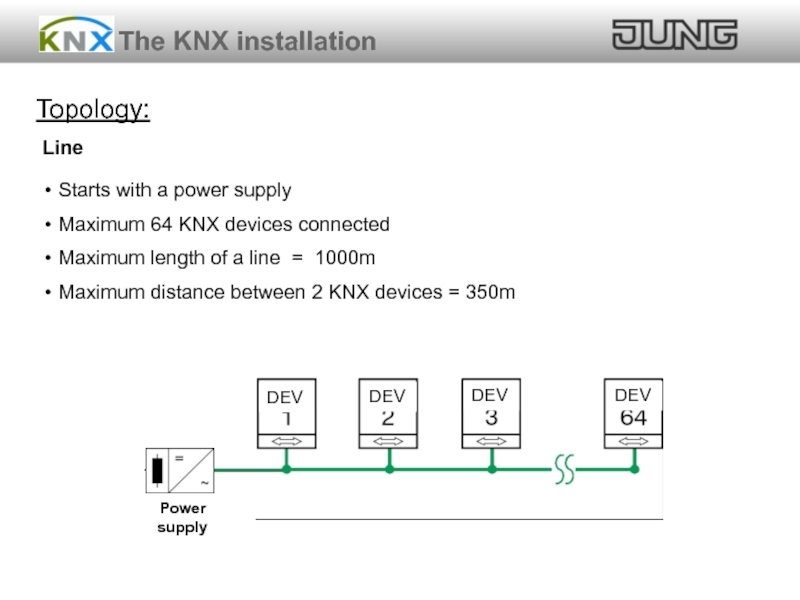

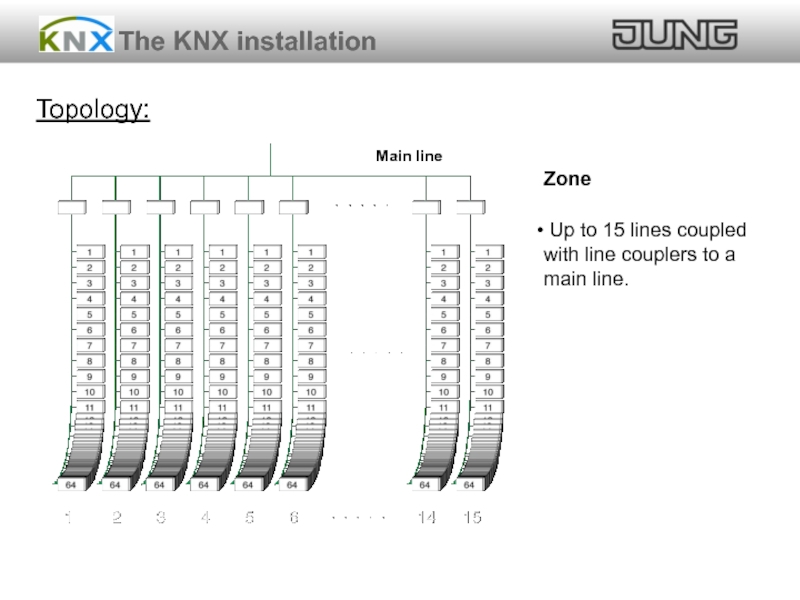

Слайд 30
Topology:
DEV
DEV
DEV
DEV
Starts with a power supply
Maximum 64 KNX devices connected
Maximum length
of a line = 1000m
Maximum distance between 2 KNX devices = 350m
Maximum distance between 2 KNX devices = 350m
Line
The KNX installation
Power
supply

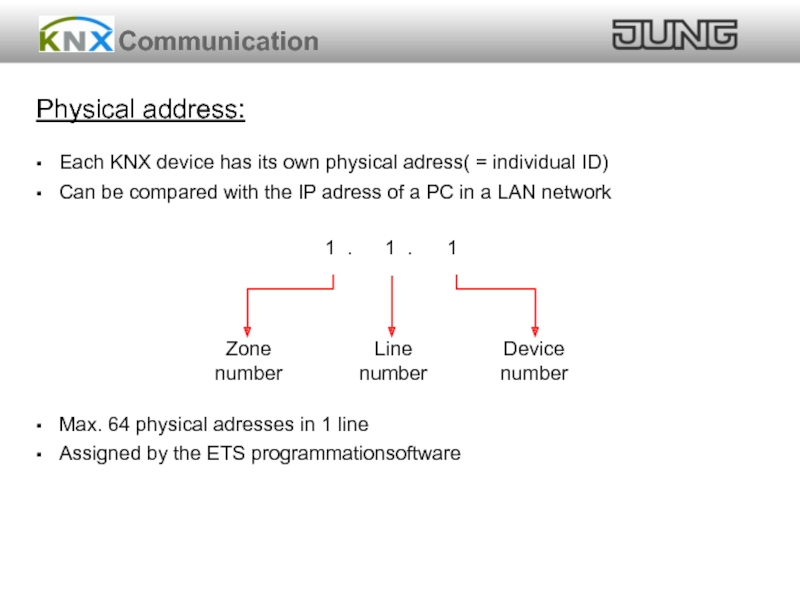

Слайд 35Communication
Physical address:
Each KNX device has its own physical adress( = individual
ID)
Can be compared with the IP adress of a PC in a LAN network
Can be compared with the IP adress of a PC in a LAN network
Zone
number
Line
number
Device
number
1 .
1
1 .
Max. 64 physical adresses in 1 line
Assigned by the ETS programmationsoftware
Слайд 361.0.0
2.0.0
15.0.0
1.1.0
1.15.0
1.1.1
1.1.2
1.1.64
DEV
DEV
DEV
DEV
DEV
1.15.1
1.15.2
1.15.64
Communication
Physical address:

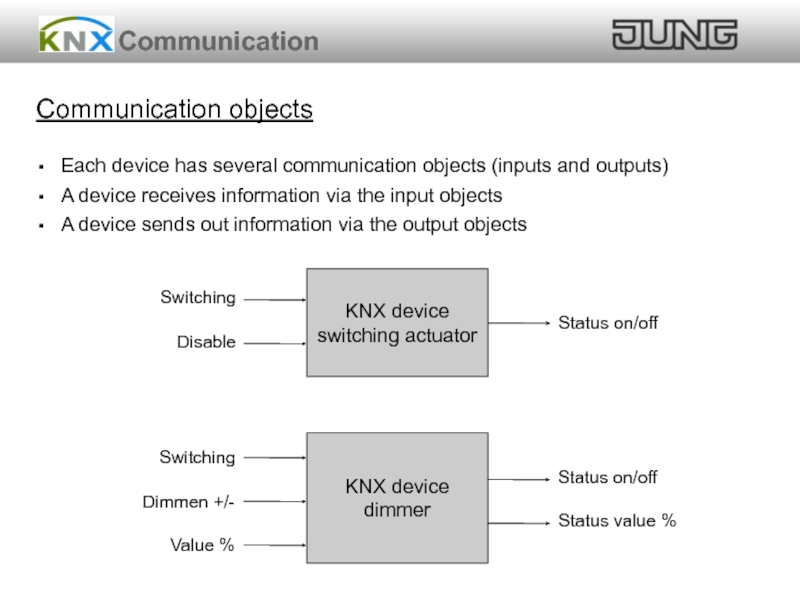

Слайд 37Communication
Communication objects
KNX device
switching actuator
KNX device
dimmer
Switching
Switching
Dimmen +/-
Value %
Status on/off
Status on/off
Status value %
Each
device has several communication objects (inputs and outputs)
A device receives information via the input objects
A device sends out information via the output objects
A device receives information via the input objects
A device sends out information via the output objects
Disable

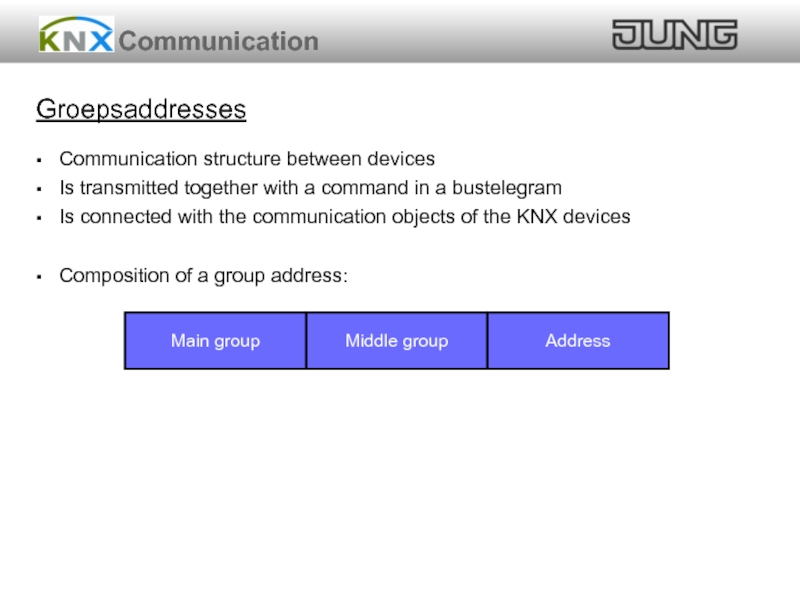

Слайд 38Groepsaddresses
Communication structure between devices
Is transmitted together with a command in a
bustelegram
Is connected with the communication objects of the KNX devices
Composition of a group address:
Is connected with the communication objects of the KNX devices
Composition of a group address:
Main group
Middle group
Address
Communication
Слайд 39Main group
Middle group
Address
1 Central on/off
2 Kitchen on/off
3 Living room on/off
4 Ground
floor on/off
5 First floor on/off
….
5 First floor on/off
….
1 Central
2 Date / time
3 Scenes
4 Logical functions
5 Disable functions
….
1 Functions
2 Lighting
3 Stores
4 Heating / cooling
5 Security
….
Communication

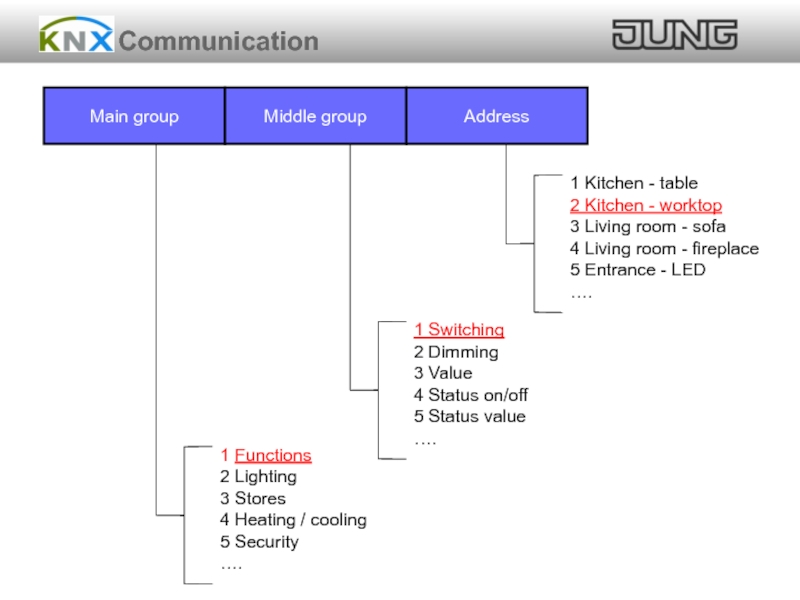

Слайд 40Main group
Middle group
Address
1 Kitchen - table
2 Kitchen - worktop
3 Living room
- sofa
4 Living room - fireplace
5 Entrance - LED
….
4 Living room - fireplace
5 Entrance - LED
….
1 Switching
2 Dimming
3 Value
4 Status on/off
5 Status value
….
Communication
1 Functions
2 Lighting
3 Stores
4 Heating / cooling
5 Security
….

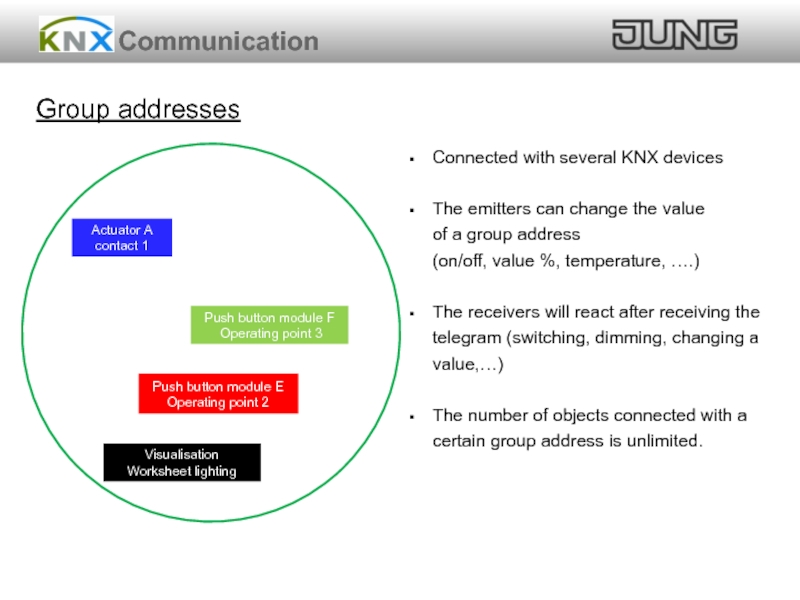

Слайд 41Group lighting / switching / kitchen table
Actuator A
contact 1
Push button
module F
Operating point 3
Operating point 3
Push button module E
Operating point 2
Visualisation
Worksheet lighting
Group addresses
Connected with several KNX devices
The emitters can change the value
of a group address
(on/off, value %, temperature, ….)
The receivers will react after receiving the telegram (switching, dimming, changing a value,…)
The number of objects connected with a certain group address is unlimited.
Communication

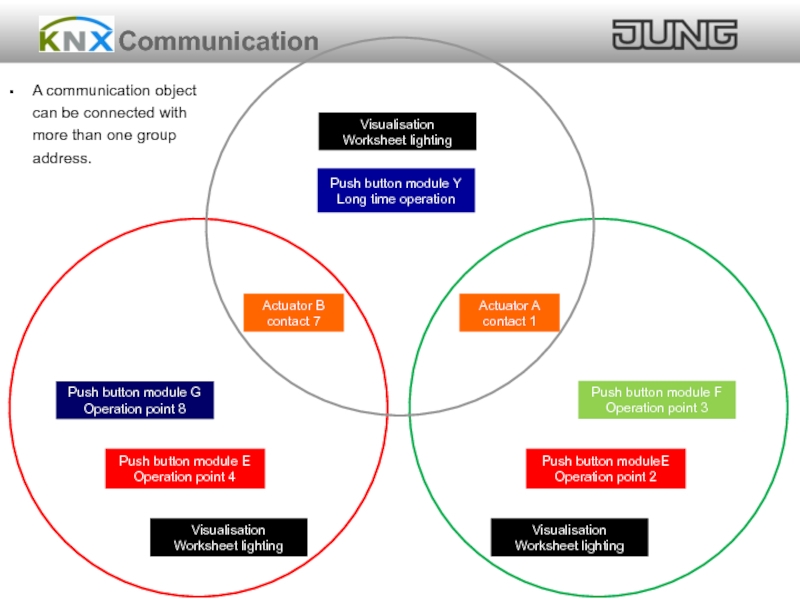

Слайд 42Group lighting / switching / sofa on-off
1/1/1
Group lighting / switching
/ kitchen on table on-off
Actuator A
contact 1
Push button module F
Operation point 3
Push button moduleE
Operation point 2
Push button module G
Operation point 8
Visualisation
Worksheet lighting
Actuator B
contact 7
Push button module E
Operation point 4
Visualisation
Worksheet lighting
Visualisation
Worksheet lighting
Push button module Y
Long time operation
Group functions / central / central on-off
A communication object can be connected with more than one group address.
Communication

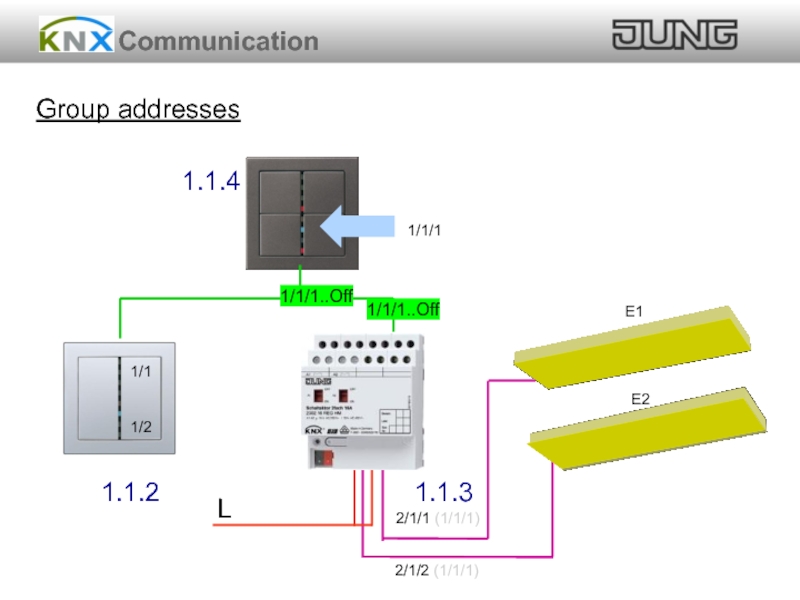

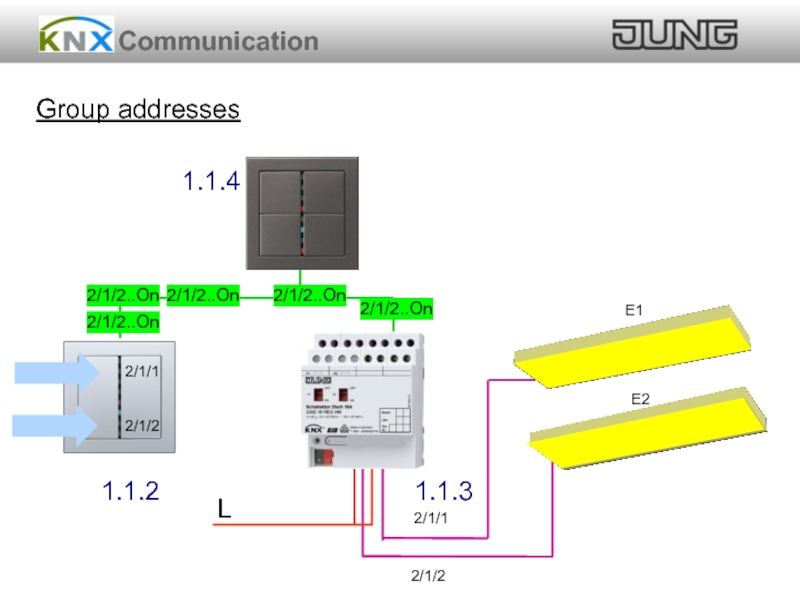

Слайд 43L
2/1/1
2/1/2
E1
E2
2/1/1
2/1/2
1.1.2
1.1.3
2/1/1..On
2/1/1..On
2/1/1..On
2/1/1..On
2/1/1..On
1.1.4
Group addresses
2/1/2..On
2/1/2..On
2/1/2..On
2/1/2..On
2/1/2..On
Communication
Слайд 44L
2/1/1 (1/1/1)
E1
E2
1.1.2
1.1.3
1/1/1..Off
1/1/1..Off
1/1/1
1/1
1/2
1.1.4
Group addresses
2/1/2 (1/1/1)
Communication
Слайд 45ETS – Engineering tool software
The role of the ETS software
Creating a
building structure
Adding KNX devicese in each zone or room
( = physical structure)
Creation of group addresses ( = logical structure)
Connecting the group addresses with the communication objects of the devices
Changing the properties of the KNX devices (when necessary)
Programming the physical adresses into each KNX device
Programming the application and the groupaddresses into the KNX devices
Searching errors with the busmontior (shows all the bustrafic)
Reporting of the project
Adding KNX devicese in each zone or room
( = physical structure)
Creation of group addresses ( = logical structure)
Connecting the group addresses with the communication objects of the devices
Changing the properties of the KNX devices (when necessary)
Programming the physical adresses into each KNX device
Programming the application and the groupaddresses into the KNX devices
Searching errors with the busmontior (shows all the bustrafic)
Reporting of the project
Слайд 48Rocco Forte Hotel de Rome, Berlin, Germany
Architect: Aukett + Heese GmbH,
Berlin Design: JUNG Stainless Steel
Слайд 49Schloss Velden, a Capella Hotel, Austria
Architect: Jabornegg & Pálffy Architekten, Vienna Design:
JUNG Stainless Steel
Слайд 50Copperhill Mountain Lodge, Åre, Sweden
Architect: Peter Bohlin/Bohlin Cywinski Jackson, Pennsylvania
Design: JUNG Stainless Steel
Слайд 51Hotel W, Barcelona, Spanien
Architekt: Ricardo Bofill Design: JUNG KNX-System in LS
990 & FD-design
Слайд 52Hotel Atlantic Kempinski, Hamburg
Bauleitung und Koordination: Büro Korb GmbH, Hamburg
Design: JUNG A creation & SL 500
