CCNA 4 Chapter 18Network Management, Part 2 презентация
Содержание
- 1. CCNA 4 Chapter 18Network Management, Part 2
- 2. Copyright 2003 Objectives Describe the administrative side
- 3. Copyright 2003 What Does a Network Look Like?
- 4. Copyright 2003 Networks with Routers
- 5. Copyright 2003 Network Inspector
- 6. Copyright 2003 Verifying Connections
- 7. Copyright 2003 Traffic Monitoring - SNMP Looks
- 8. Copyright 2003 Simple Network Management Protocol (SNMP)
- 9. Copyright 2003 Remote Monitoring - RMON A
- 10. Copyright 2003 Traffic Monitoring – RMON Dual-Management Consoles
- 11. Copyright 2003 MIM Tree with RMON Extensions
- 12. Copyright 2003 Problem Solving
- 13. Copyright 2003 Error Report Documentation
- 14. Copyright 2003 Software Troubleshooting Tools

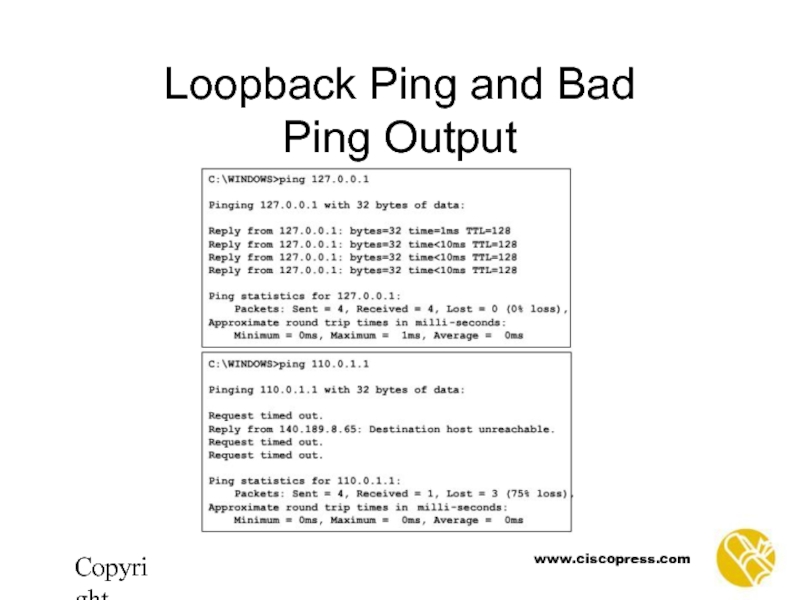

- 15. Copyright 2003 Loopback Ping and Bad Ping Output
- 16. Copyright 2003 Tracert Output
- 17. Copyright 2003 Telnet Output
- 18. Copyright 2003 NETSTAT Output
- 19. Copyright 2003 ARP Gathers hardware address of local hosts and the default gateway

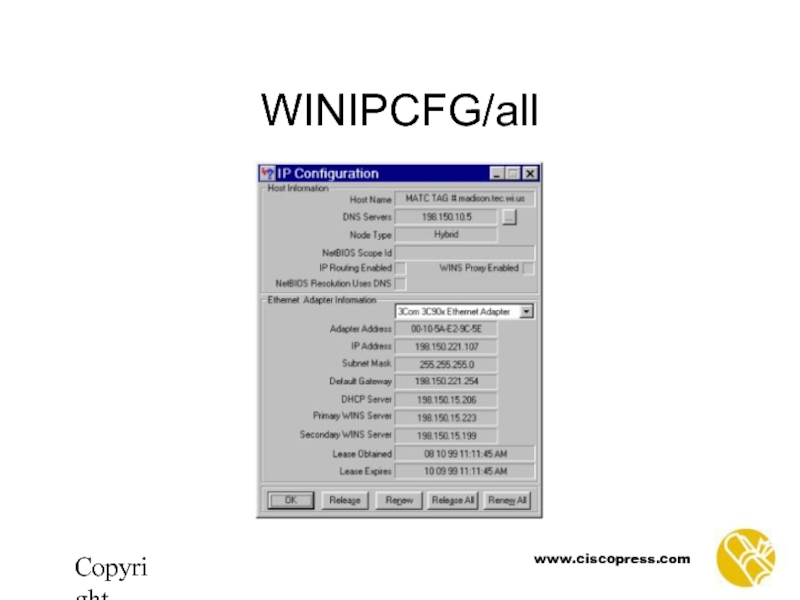

- 20. Copyright 2003 WINIPCFG/all
- 21. Copyright 2003 IPCONFIG/all
Copyright 2003 Objectives Describe the administrative side of network management Describe how to monitor a network Describe how to troubleshoot a network
Слайд 2Copyright 2003
Objectives
Describe the administrative side of network management
Describe how to monitor
a network
Describe how to troubleshoot a network
Describe how to troubleshoot a network
Слайд 7Copyright 2003
Traffic Monitoring - SNMP
Looks at the actual packet traffic on
the network
and generates reports based on the network traffic. Detects failing equipment and whether a component is overloaded or poorly configured.
Слайд 8Copyright 2003
Simple Network Management Protocol (SNMP)
Routers, hubs, and switches might contain
SNMP agents to allow them to be controlled by a management station.
Слайд 9Copyright 2003
Remote Monitoring - RMON
A RMON probe is located on each
segment and gathers the specified data from each segment and relays it to the management console.
Слайд 11Copyright 2003
MIM Tree with RMON Extensions
RMON extensions to SNMP enable you
to look at the network as whole instead of looking at individual devices.
