Reset bottom презентация
Содержание
- 1. Reset bottom
- 2. 09/01/2019 Reset to default IP subnet To
- 3. 09/01/2019 Reset settings to Factory Default To
- 4. 09/01/2019 Forced Software upload To activate the
- 5. 09/01/2019 Forced Software upload Changing Pc Ethernet
- 6. 09/01/2019 Forced Software upload Setup the TFTP
- 7. 09/01/2019 To activate the reset bottom,
09/01/2019 Reset to default IP subnet To activate the reset bottom, use a point pen or a paper clip
Слайд 209/01/2019
Reset to default IP subnet
To activate the reset bottom, use a
point pen or a paper clip
Слайд 309/01/2019
Reset settings to Factory Default
To activate the reset bottom, use a
point pen or a paper clip
While the terminal is operating, press the reset bottom and keep it pressed until the terminal switches off. (approx.30 sec).
Release the reset bottom before the terminal reboots.

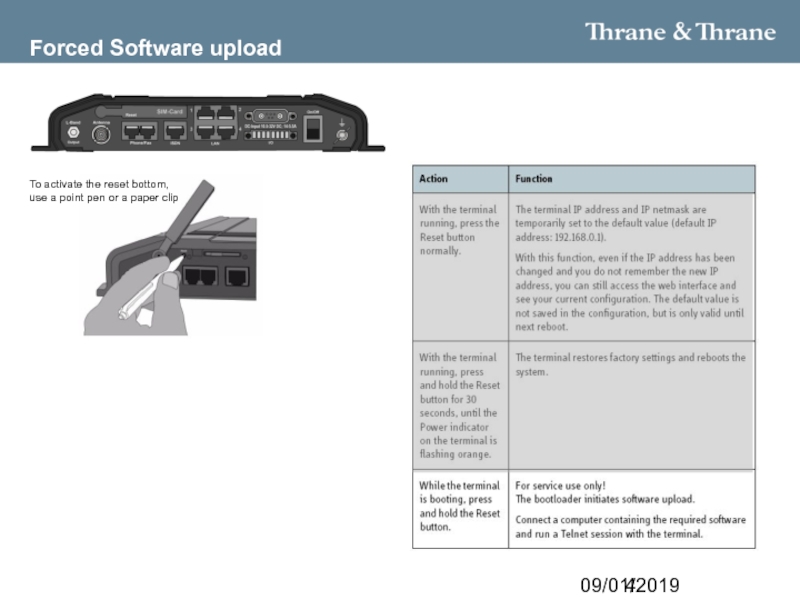

Слайд 409/01/2019
Forced Software upload
To activate the reset bottom, use a point pen
or a paper clip

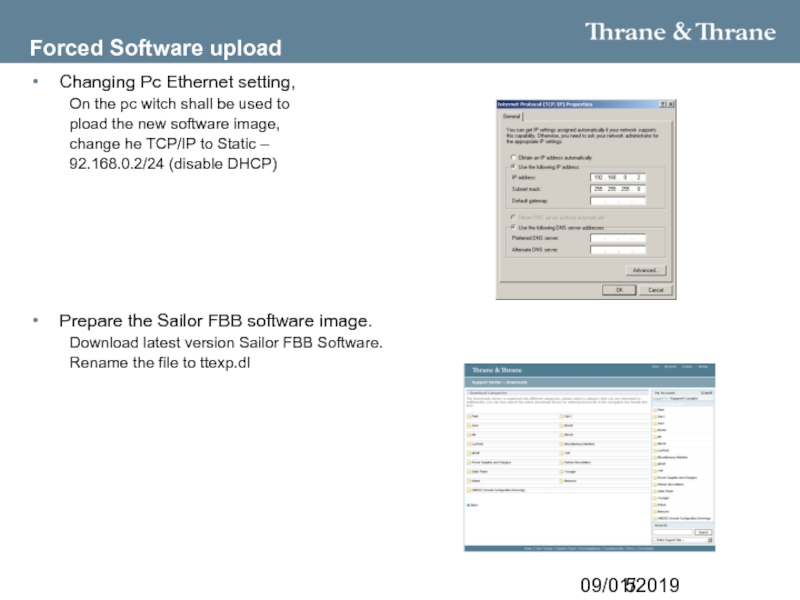

Слайд 509/01/2019
Forced Software upload
Changing Pc Ethernet setting,
On the pc witch shall
be used to
pload the new software image,
change he TCP/IP to Static –
92.168.0.2/24 (disable DHCP)
pload the new software image,
change he TCP/IP to Static –
92.168.0.2/24 (disable DHCP)
Prepare the Sailor FBB software image.
Download latest version Sailor FBB Software.
Rename the file to ttexp.dl
Слайд 609/01/2019
Forced Software upload
Setup the TFTP server.
Copy the Sailor FBB software
mage to
the FTP server Root directory.
(In this case c:\Bgan-\tftp)
Start the TFTP server.
(In this case c:\Bgan-\tftp)
Start the TFTP server.
Uploading software.
Switch OFF the Sailor FBB terminal.
Connect the pc to one of the four LAN ports
on the Sailor FBB terminal.
Switch ON the Sailor FBB terminal while
keeping the reset bottom pressed.
File transfer start.
Observe that the terminal located the
TFTP server and the file transfer starts.
File transfer completed.
Wait until the file transfer has completed

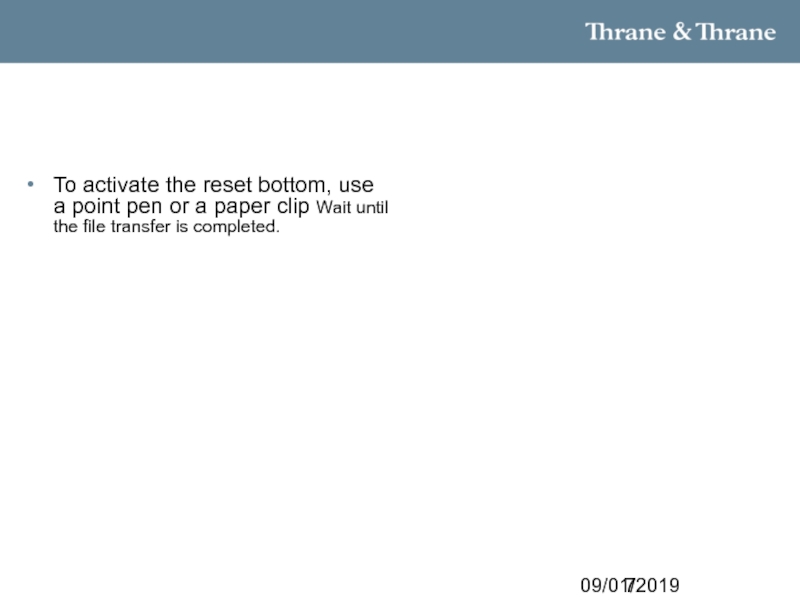

Слайд 709/01/2019
To activate the reset bottom, use a point pen or a
paper clip Wait until the file transfer is completed.
