Microcontrollers misis 2017. Applications презентация

MISiS 2017

+ DAC + EEPROM + SPI + I2C + UART + Vregulator

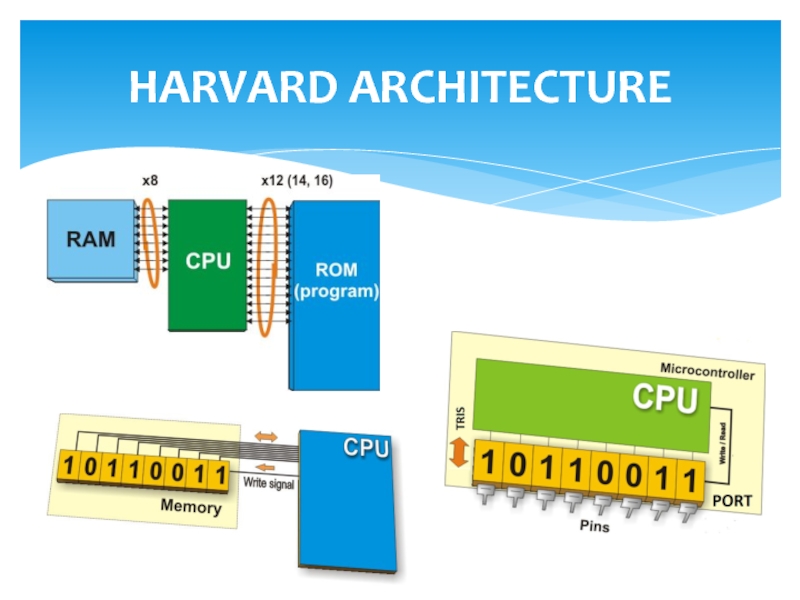

Microcontroller ≠ Microprocessor

OR GATE NOT GATE EXCLUSIVE OR

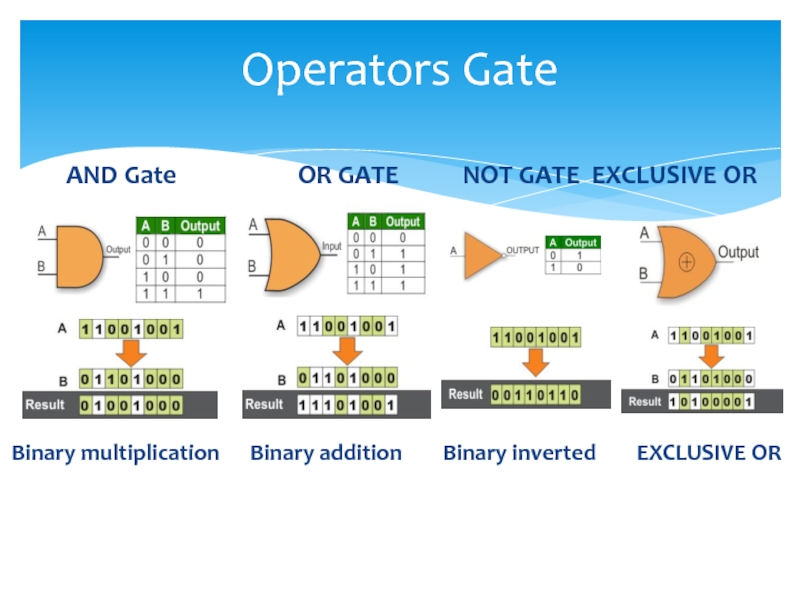

Operators Gate

Binary multiplication Binary addition Binary inverted EXCLUSIVE OR

Steps

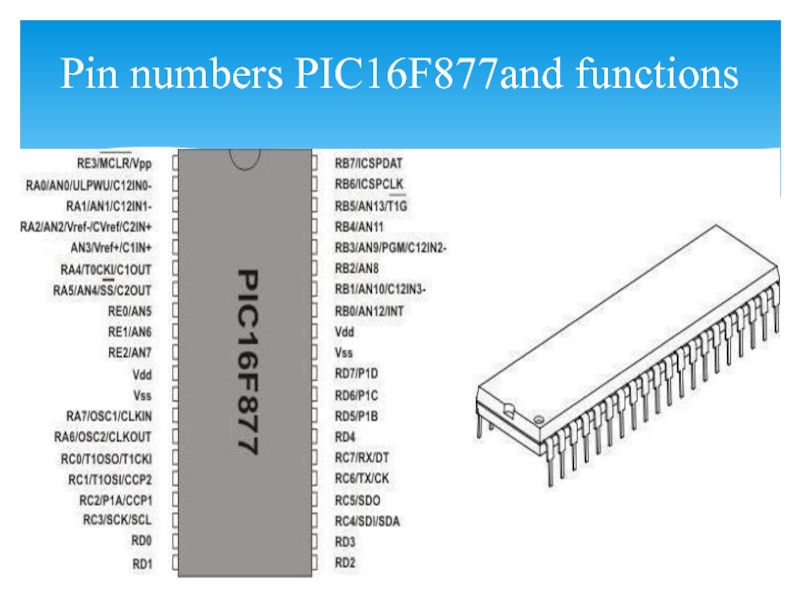

Looking for MK, read PDF.

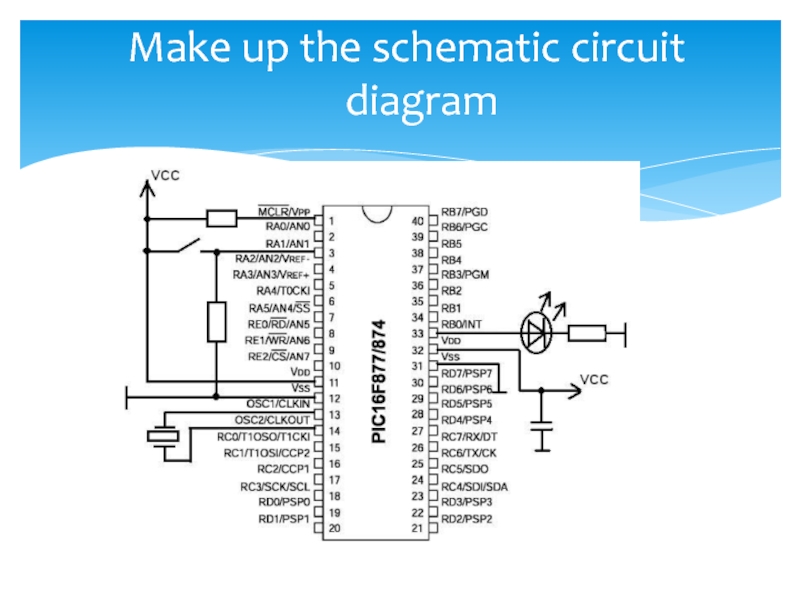

Make up the schematic circuit diagram
Do the device under the scheme

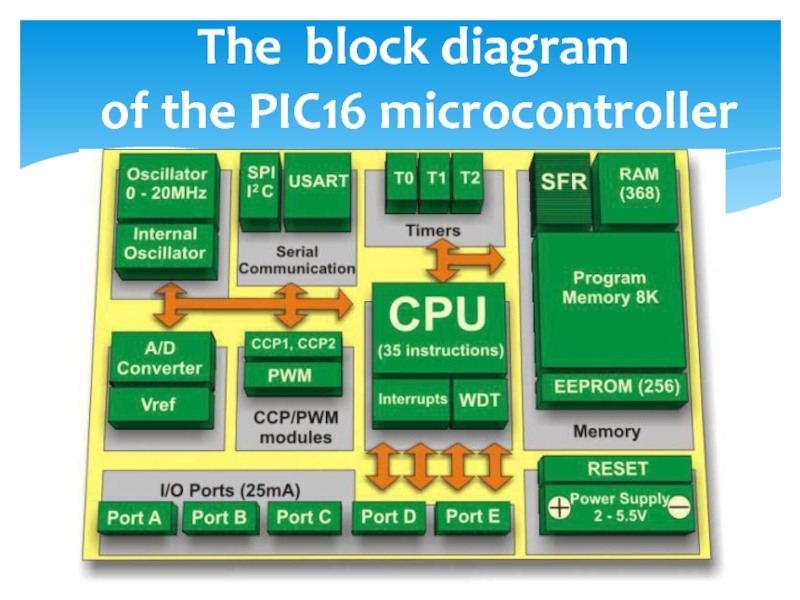

Draw the block diagram of the program
Write the code on the block diagram
Programmable

(libraries and files) __CONFIG(0x03F72); // configurable MK
void main(void) //Start program
{
TRISА<1>=1; // select bit port input
// оr so: TRISA=0b111111; //выход-0 вход-1
TRISB=0; //select bit port output
PORTB=0; //source data entry in the registers of the port
// оr so: RB0 = 0; // source data entry in the registers of the port

while(1) // infinite loop
{

if (RA1==1)
RB0=1; //Yes
else RB0=0; //No
}
}
