Слайд 1

Слайд 2
Текст слайда:

Islamic Azad University- Karaj Branch
Faculty of Science
Department of Chemistry


Subject:
Synthesis, Separation and Spectroscopic and Structural study on
1,3-bis(2-methoxyphenyl)triazene & 1,3-bis(2-methoxyphenyl)triazene as Ligand and their Complex with Hg cations

Thesis advisor:
Mohammad R. Melardi; Ph.D.
Consulting advisor:
Mohammad K. Rofouei; Ph.D.

By:
Mohammad Barkhi


Слайд 3
Текст слайда:

Triazenes
Triazenes are a class of organic compounds characterized by the presence of diazoamino functional group (N═N─N). The simplest member of the family is known just as Triazene.

These compounds have been used in a variety of application;
in transition metal complexes as ligand (in Triazenide form), in polymer synthesis and anticancer drugs.

J. Am. Chem. Soc. 1988

Inorg. Chem. 2005


Слайд 4
Текст слайда:

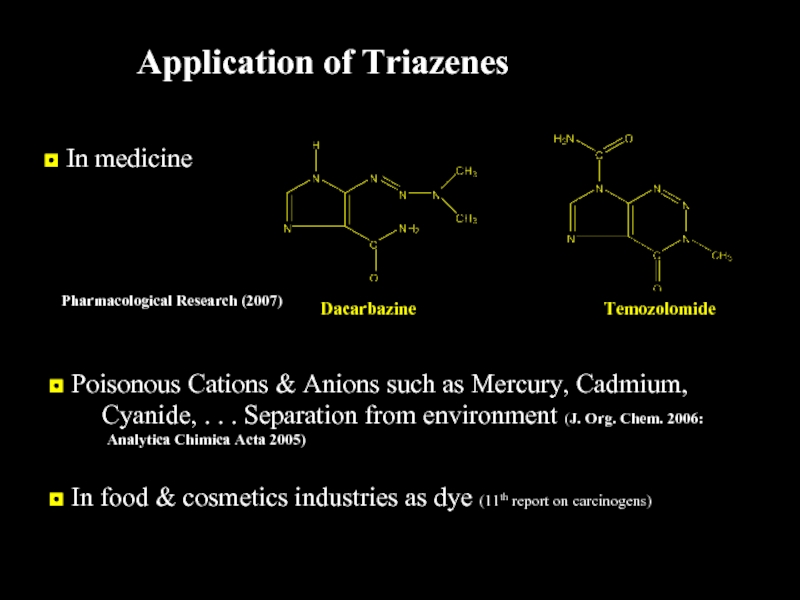

Application of Triazenes

◘ In medicine

◘ Poisonous Cations & Anions such as Mercury, Cadmium,
Cyanide, . . . Separation from environment (J. Org. Chem. 2006:
Analytica Chimica Acta 2005)

Pharmacological Research (2007)

◘ In food & cosmetics industries as dye (11th report on carcinogens)

Dacarbazine

Temozolomide


Слайд 5
Текст слайда:

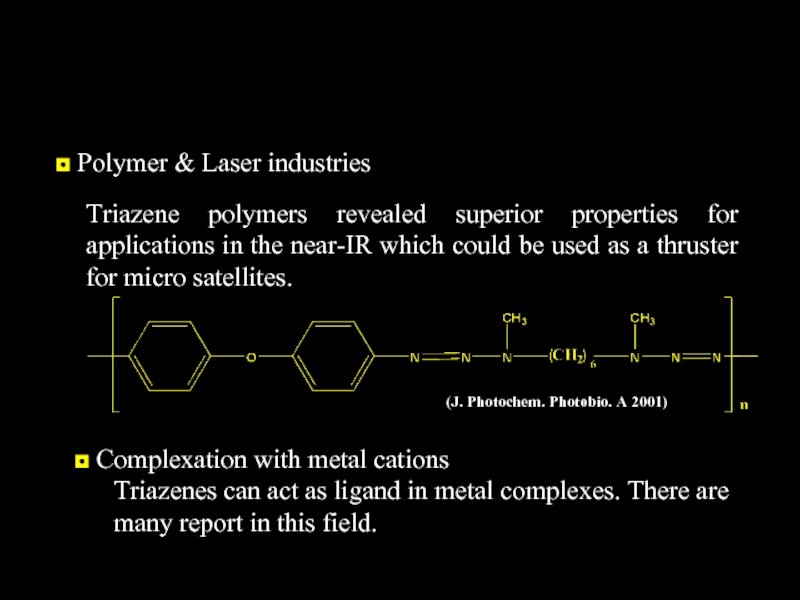

◘ Polymer & Laser industries

Triazene polymers revealed superior properties for applications in the near-IR which could be used as a thruster for micro satellites.

(J. Photochem. Photobio. A 2001)

◘ Complexation with metal cations
Triazenes can act as ligand in metal complexes. There are
many report in this field.


Слайд 6
Текст слайда:

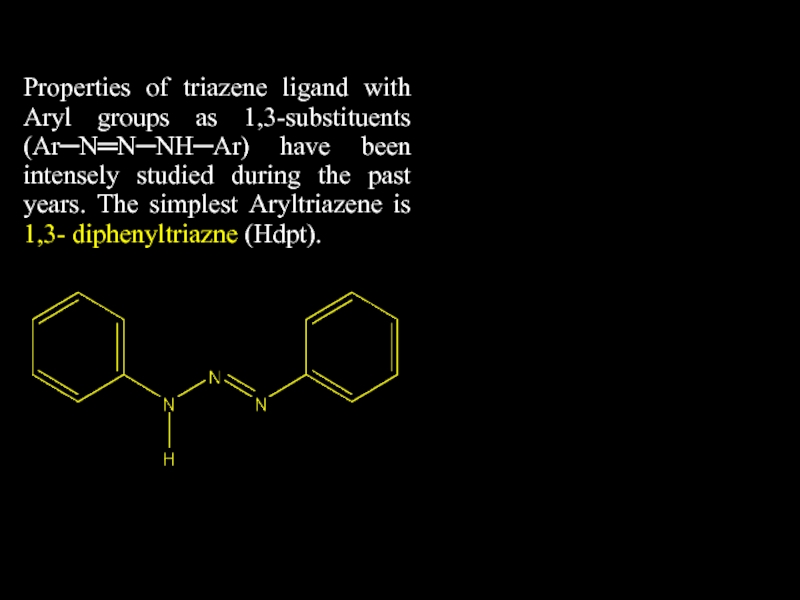

Properties of triazene ligand with Aryl groups as 1,3-substituents (Ar─N═N─NH─Ar) have been intensely studied during the past years. The simplest Aryltriazene is 1,3- diphenyltriazne (Hdpt).


Слайд 7
Текст слайда:

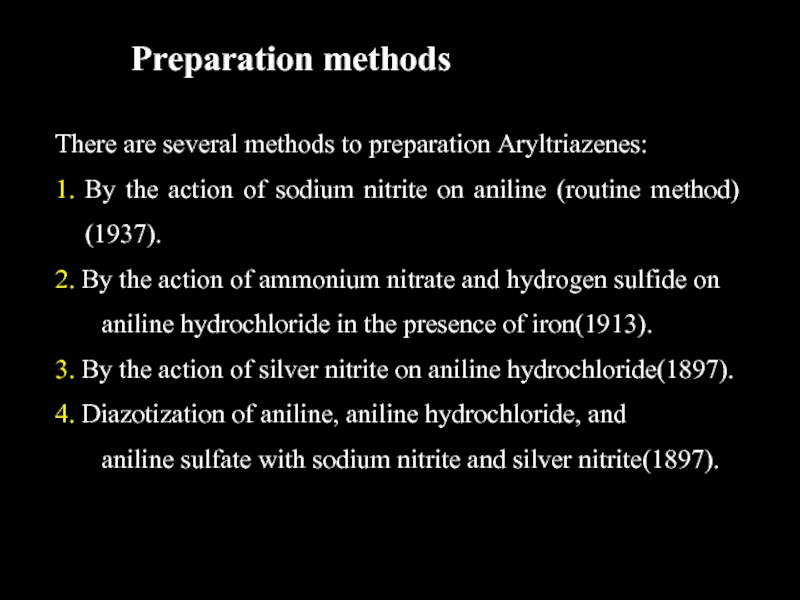

Preparation methods

There are several methods to preparation Aryltriazenes:
1. By the action of sodium nitrite on aniline (routine method) (1937).
2. By the action of ammonium nitrate and hydrogen sulfide on
aniline hydrochloride in the presence of iron(1913).
3. By the action of silver nitrite on aniline hydrochloride(1897).
4. Diazotization of aniline, aniline hydrochloride, and
aniline sulfate with sodium nitrite and silver nitrite(1897).


Слайд 8
Текст слайда:

The coordination properties of 1,3-diphenyltriazene was found to be:
N1-monodentate ligand


Trans-Pd[3-(2-flurophenil)-1-(4-nitrophenil)triazenido]2(C5H5N)2

Estela dos Reis Crespan 2005


Слайд 9
Текст слайда:

N1,N3-bidentate ligand

[Hg(N3(Ph(OCH3))2)(Cl)]

M. R. Melardi; Analytical Sciences 2007


Слайд 10
Текст слайда:

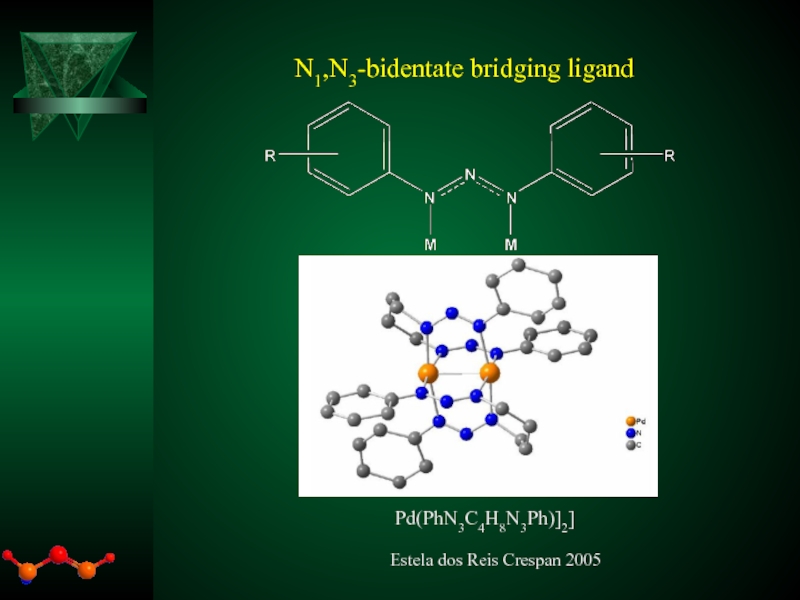

N1,N3-bidentate bridging ligand


[Pd(PhN3C4H8N3Ph)]2

Estela dos Reis Crespan 2005


Слайд 11
Текст слайда:

N1,N3-tridentate bridging ligand

[Tl(RC6H4N3C6H4R)]2

Inorganica Chimica Acta 2006


Слайд 12
Текст слайда:

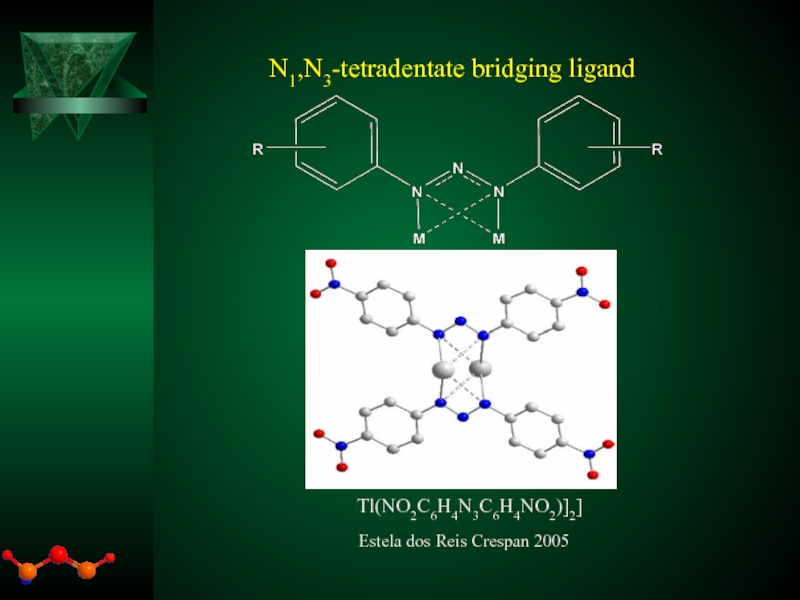

N1,N3-tetradentate bridging ligand

[Tl(NO2C6H4N3C6H4NO2)]2

Estela dos Reis Crespan 2005


Слайд 13
Текст слайда:

Preparation methods of Aryltriazene complexes with metals

There are several methods to prepare this complexes;
Such as:
Reaction of metal carboxylate with Aryltriazenes(1941).
Reaction of metal halide with Lithium triazenid complex
(1973).
Reaction of metal salt with Aryltriazene next to triethylamine & heat(2003).
Reaction of metal hydride or metal alkyl with Aryltriazene
(1979).
etc…


Слайд 14
Текст слайда:

Experimental . . .


Слайд 15
Текст слайда:

1,3-bis(2-methoxyphenyl)triazene synthesis

M.p= 95- 97 °C
M.w= 257.29 g.mol-1
Yield= 46.64 %

Anal. Sci. 2006

Single crystals in diethylether were obtained.


Слайд 16
Текст слайда:

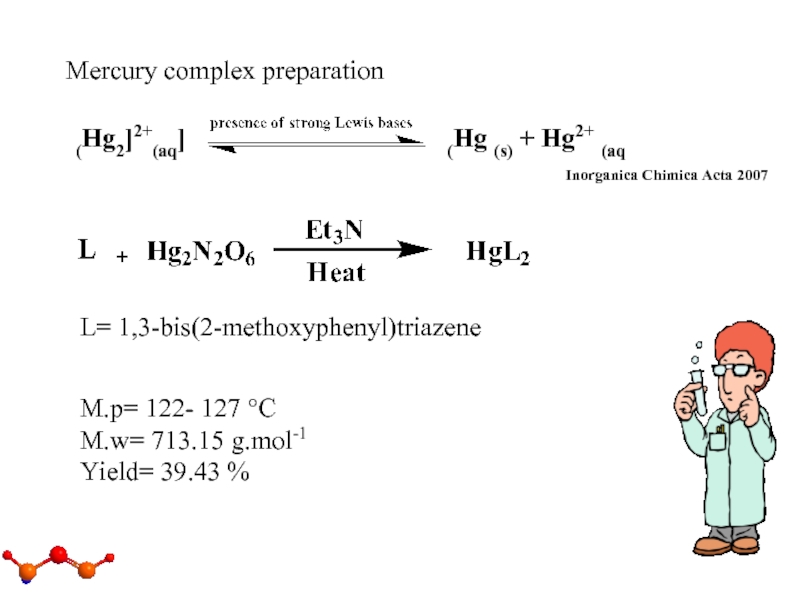

Mercury complex preparation

Hg (s) + Hg2+ (aq)

[Hg2]2+(aq)

M.p= 122- 127 °C
M.w= 713.15 g.mol-1
Yield= 39.43 %

L= 1,3-bis(2-methoxyphenyl)triazene

Inorganica Chimica Acta 2007


Слайд 17
Текст слайда:

Elemental Analysis

Mercury identification in complex

► using diphenylcarbazide

► using Sodium hydroxide (especially for Hg2+ ion)
Hg2+ + 2OHˉ → HgO↓ + H2O

► using Potassium iodide
Hg2+ (aq) + 2I‾ (aq) → HgI2↓


Слайд 18
Текст слайда:

►IR spectra

Ligand

Complex

3352

1623

393

Spectroscopic studies


Слайд 19
Текст слайда:

►1H-NMR spectra

Ligand

Complex


Слайд 20
Текст слайда:

►13C-NMR spectra

Ligand

Complex


Слайд 21
Текст слайда:

Molecular structure of Mercury complex


Слайд 22
Текст слайда:

ORTEP view of Mercury complex


Слайд 23
Текст слайда:

Crystal packing fragment along a crystal axes


Слайд 24
Текст слайда:




Crystal data for Mercury complex


Слайд 25
Текст слайда:

(I)

(II)

[Hg(N3(Ph(OCH3))2)(Cl)]

[Hg(RC6H4N3C6H4R)2Py]


Слайд 26

Слайд 27
Текст слайда:

1,3- bis(2-cyanophenyl)triazene was synthesized first time
like to 1,3- bis(2-cyanophenyl)triazene.

M.p= 125.6 -129.3 °C
M.w= 247.26 g.mol-1
Yield= 95.25 %


Single crystals in diethylether were obtained.


Слайд 28
Текст слайда:

Mercury complex preparation

L=1,3- bis(2-cyanophenyl)triazene

Decomposes at 238.3 °C
M.w= 694.13 g.mol-1
Yield= 44.26 %


Слайд 29
Текст слайда:

Mercury identification in complex

► using diphenylcarbazide

► using Sodium hydroxide (especially for Hg2+ ion)
Hg2+ + 2OHˉ → HgO↓ + H2O

Elemental analysis


Слайд 30
Текст слайда:

► UV-Visible spectra

Spectroscopic studies


Слайд 31
Текст слайда:

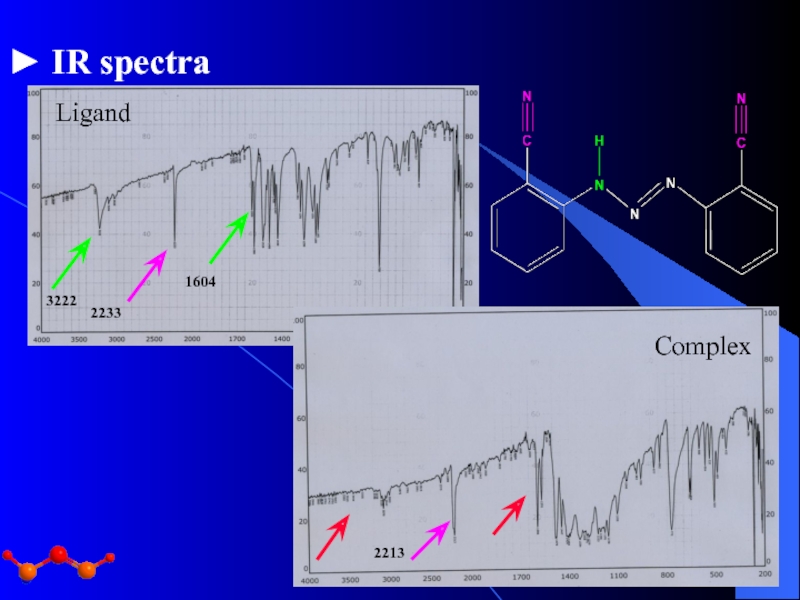

► IR spectra

Ligand

Complex

2233

3222

1604

2213


Слайд 32
Текст слайда:

► 1H-NMR spectra

Ligand

Complex


Слайд 33
Текст слайда:

► 13C-NMR spectra

Ligand

Complex


Слайд 34
Текст слайда:

► X-ray diffraction crystallography

For Mercury complex we found the answer below from
operator:

But the crystal structure of 1,3-bis(2-cyanophenyl)triazene
ligand was determined.


Слайд 35
Текст слайда:

Centrosymmetric H-bonded dimmers of molecules of type A & A'.


Слайд 36
Текст слайда:

General view of molecule of type A & A'.


Слайд 37
Текст слайда:

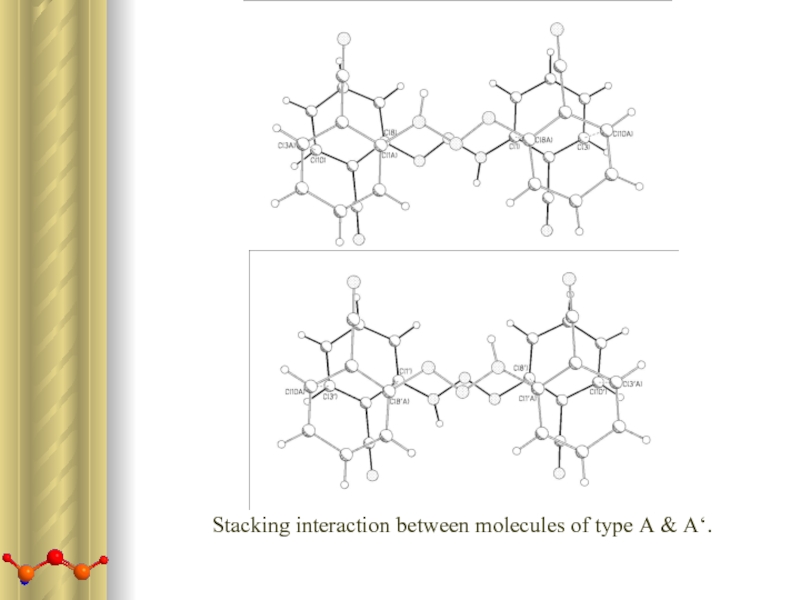

Stacking interaction between molecules of type A & A‘.


Слайд 38
Текст слайда:

Crystal packing of 1,3-bis(2-cyanophenyl)triazene


Слайд 39
Текст слайда:

conclusion

► Elemental analysis & spectroscopic studies show that
two kind of complex containing Aryltriazene & Hg cation
were formed.

► Molecular & crystal structure of
[Hg(CH3OC6H4N3C6H4OCH3)2]
were determined by X-ray diffraction method. The
complex crystallizes in Orthorhombic crystal system
& and Pna21 space group.

► Crystal structure of complex of Hg cation &
1,3-bis(2-cyanophenyl)triazene was not determined;
but studies show that the ML2 complex was formed.


Слайд 40

Слайд 41
Текст слайда:

Special thanks to:

Dr. Mohammad R. Melardi
Dr. Mohammad K. Rofouei
Dr. Saeed Dehghanpour
Dr. Mohammad R. Talei

Thank you . . .
