ETWeb Technical Training презентация
Содержание
- 1. ETWeb Technical Training

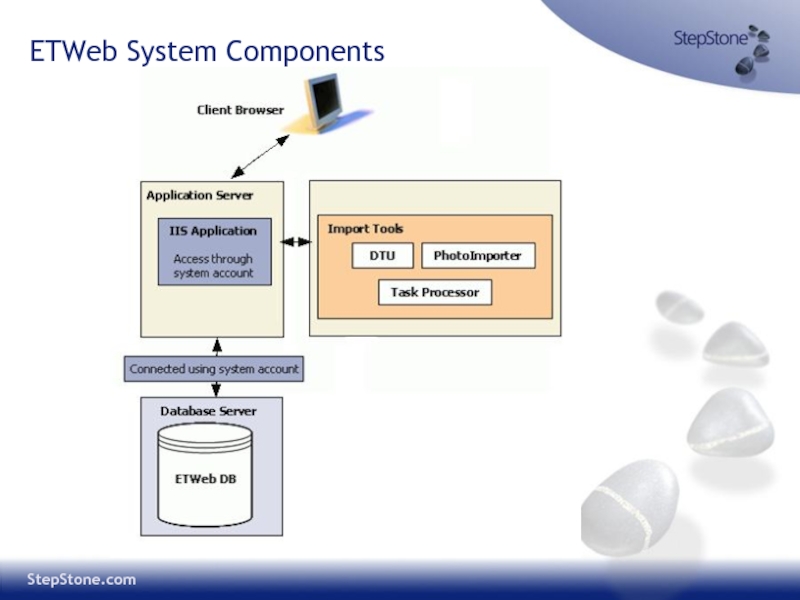

- 2. ETWeb System Components

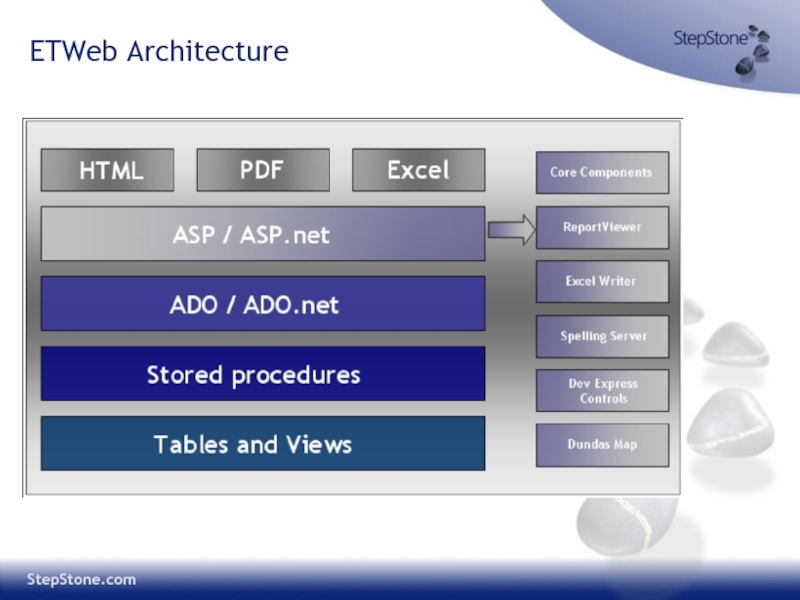

- 3. ETWeb Architecture
- 4. ETWeb Frontend - Web Server ASP ASP
- 5. ASP Pages / ASP.NET Pages Mostly ASP
- 6. App Pools / Folder changes v10:
- 7. Database SQL Server 2005 & 2008 ERWIN
- 8. Database Naming Conventions Form SPs: pfrm*_Get pzfrm*_Get pfrm*_Save
- 9. ETWebAspLib (EWAL) VB6 Library Form Controls &
- 10. .NET Components Found in the bin folder ETWeb dlls: StepStone.ETWeb.Core.dll StepStone.ETWeb.Web.dll StepStone.Solutions.Security.SingleSignOn.dll StepStone.ETWeb.Services.IgraspIntegration.dll StepStone.Igrasp.Services.Shared.dll
- 11. 3rd Party Components MS Report Viewer 2008

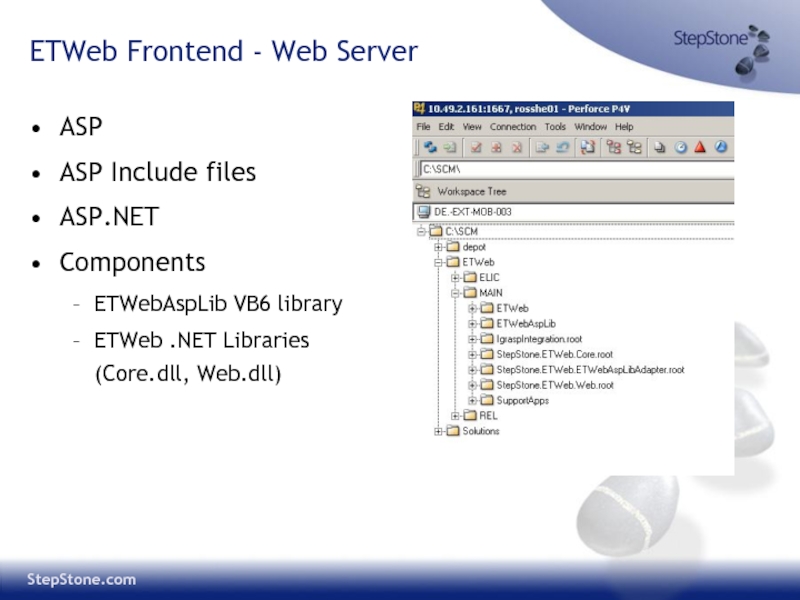

Слайд 4ETWeb Frontend - Web Server
ASP
ASP Include files
ASP.NET
Components
ETWebAspLib VB6 library
ETWeb .NET Libraries
(Core.dll,
Web.dll)

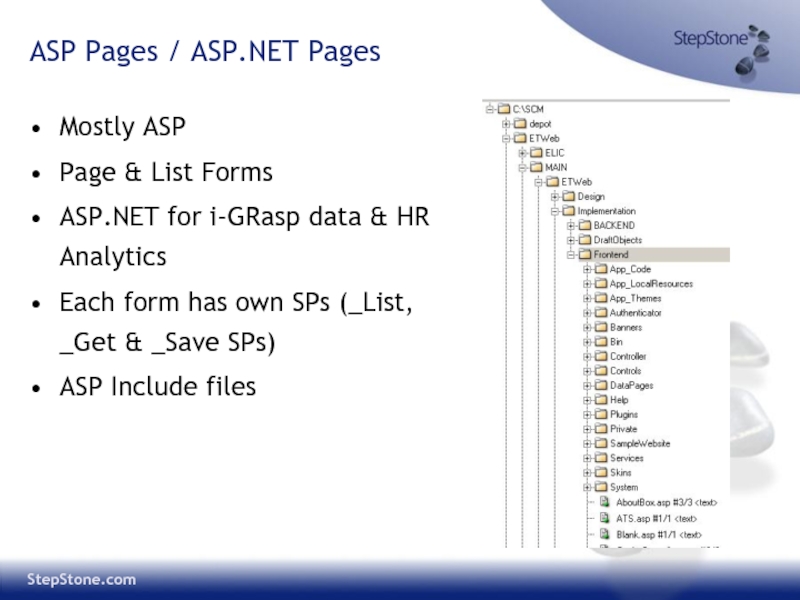

Слайд 5ASP Pages / ASP.NET Pages
Mostly ASP
Page & List Forms
ASP.NET for i-GRasp
data & HR Analytics
Each form has own SPs (_List, _Get & _Save SPs)
ASP Include files
Each form has own SPs (_List, _Get & _Save SPs)
ASP Include files

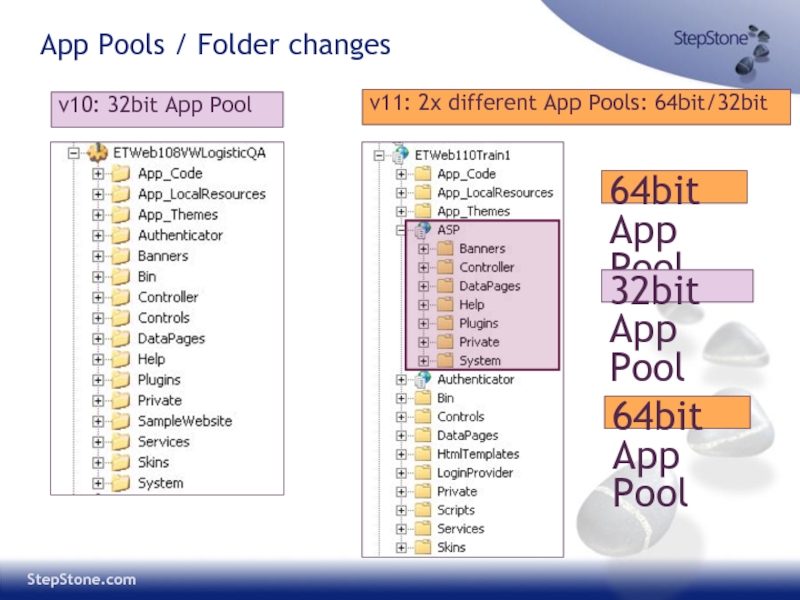

Слайд 6App Pools / Folder changes
v10: 32bit App Pool
64bit App Pool
32bit
App Pool
v11: 2x different App Pools: 64bit/32bit
64bit App Pool
Слайд 7Database
SQL Server 2005 & 2008
ERWIN used to create DB Tables, triggers
etc.
ALL access through SPs
Each forms has dedicated SPs (_List, _Get & _Save SPs)
Select SPs for the drop down lists (Code Tables)
Get SPs for Components
ALL access through SPs
Each forms has dedicated SPs (_List, _Get & _Save SPs)
Select SPs for the drop down lists (Code Tables)
Get SPs for Components

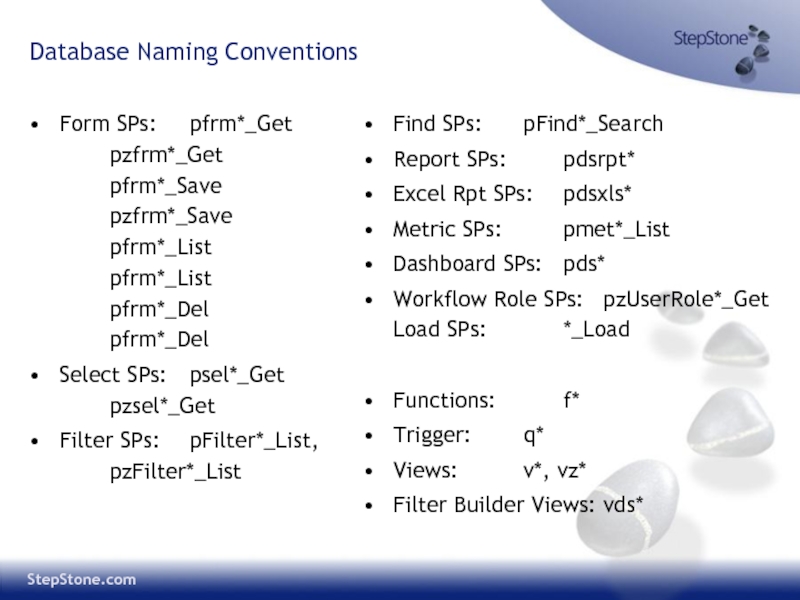

Слайд 8Database Naming Conventions
Form SPs: pfrm*_Get
pzfrm*_Get
pfrm*_Save
pzfrm*_Save
pfrm*_List
pfrm*_List
pfrm*_Del
pfrm*_Del
Select SPs: psel*_Get
pzsel*_Get
Filter SPs: pFilter*_List,
pzFilter*_List
Find SPs: pFind*_Search
Report SPs: pdsrpt*
Excel Rpt SPs: pdsxls*
Metric SPs: pmet*_List
Dashboard
SPs: pds*
Workflow Role SPs: pzUserRole*_Get Load SPs: *_Load
Functions: f*
Trigger: q*
Views: v*, vz*
Filter Builder Views: vds*
Workflow Role SPs: pzUserRole*_Get Load SPs: *_Load
Functions: f*
Trigger: q*
Views: v*, vz*
Filter Builder Views: vds*

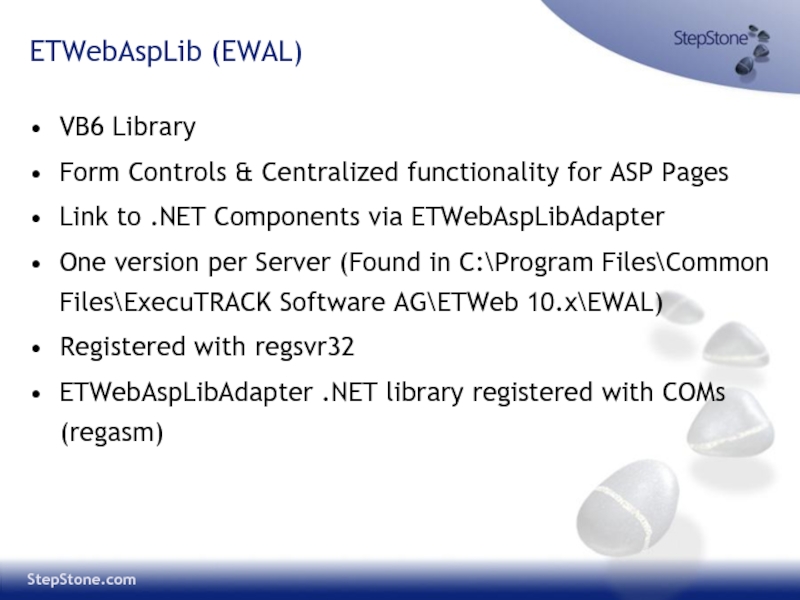

Слайд 9ETWebAspLib (EWAL)
VB6 Library
Form Controls & Centralized functionality for ASP Pages
Link to
.NET Components via ETWebAspLibAdapter
One version per Server (Found in C:\Program Files\Common Files\ExecuTRACK Software AG\ETWeb 10.x\EWAL)
Registered with regsvr32
ETWebAspLibAdapter .NET library registered with COMs (regasm)
One version per Server (Found in C:\Program Files\Common Files\ExecuTRACK Software AG\ETWeb 10.x\EWAL)
Registered with regsvr32
ETWebAspLibAdapter .NET library registered with COMs (regasm)

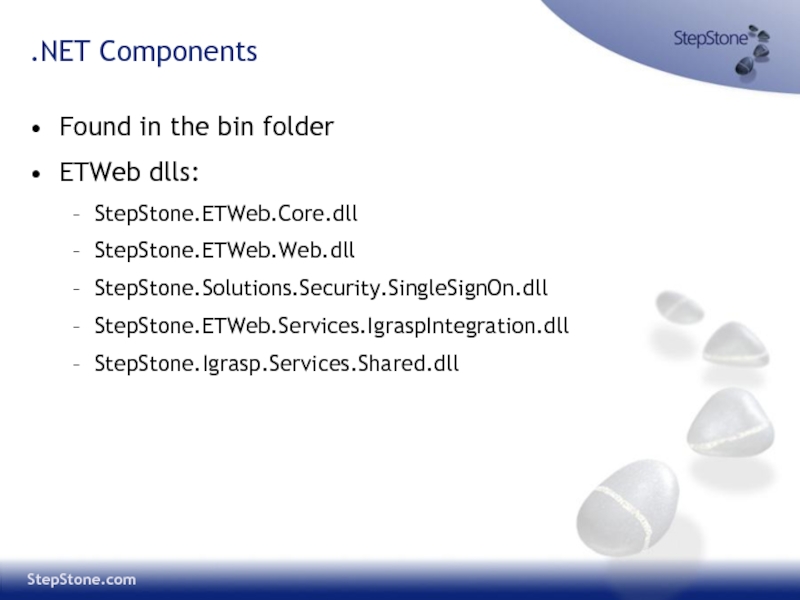

Слайд 10.NET Components
Found in the bin folder
ETWeb dlls:
StepStone.ETWeb.Core.dll
StepStone.ETWeb.Web.dll
StepStone.Solutions.Security.SingleSignOn.dll
StepStone.ETWeb.Services.IgraspIntegration.dll
StepStone.Igrasp.Services.Shared.dll

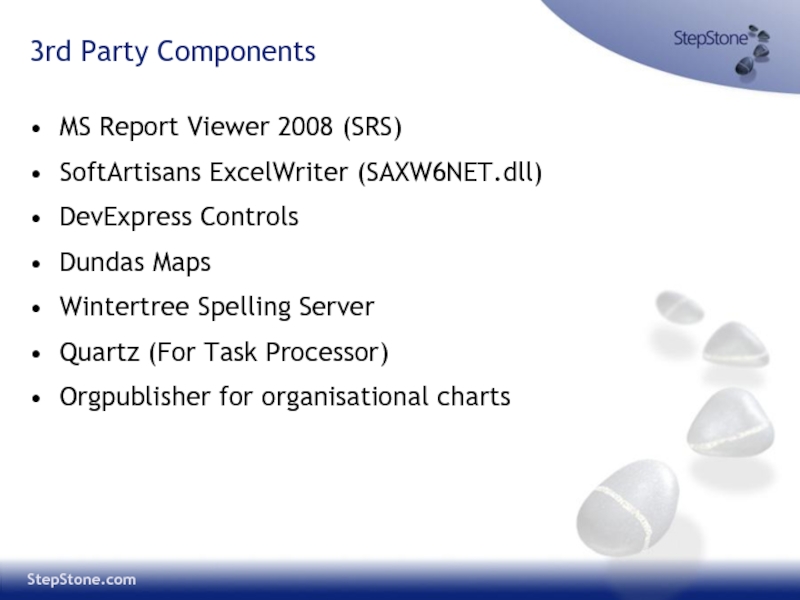

Слайд 113rd Party Components
MS Report Viewer 2008 (SRS)
SoftArtisans ExcelWriter (SAXW6NET.dll)
DevExpress Controls
Dundas Maps
Wintertree
Spelling Server
Quartz (For Task Processor)
Orgpublisher for organisational charts
Quartz (For Task Processor)
Orgpublisher for organisational charts
